Zongshen 177F(E)

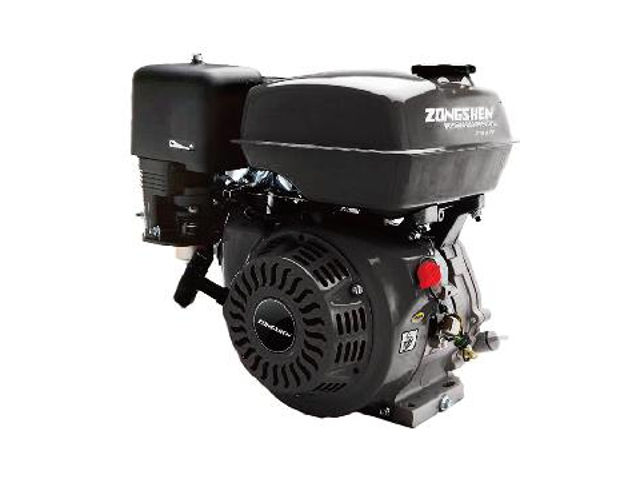

Zongshen 177F(E)The Zongshen 177F(E) is a 270 cc, (16.5 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine manufactured by Zongshen Power Co. for general-purpose applications.

The Zongshen 177F(E) engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and a recoil starter or electric starter. The Zongshen 177F(E) engine a compression ratio rating is 8.4:1. It has a 77.0 mm (3.03 in) cylinder bore and 58.0 mm (2.28 in) piston stroke.

The Zongshen ZS 177F(E) produced 7.9 PS (5.8 kW; 8.0 HP) at 3,600 rpm of maximum output power and 15.8 N·m (1.6 kg·m, 11.6 ft·lb) of maximum torque.

General information

Engine Specifications
ModelBT 177F(E)
Type4-stroke, OHV, single cylinder
Displacement270 cm2, (16.5 cu·in)
Max. horsepower7.9 PS (5.8 kW; 8.0 HP) at 3,600 rpm
Max. torque15.8 N·m (1.6 kg·m, 11.6 ft·lb)
Fuel systemCarburetor
Cooling systemForced-air
Ignition systemTransistorized
Lubricating systemSplash system
Starting system 177F – Recoil starter
177FE – Electric staretr
Fuel tank capacity5.2 L (1.37 US. gal. 1.14 Imp. gal.)
Fuel consumption374 g/kWh
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

Zongshen ZS 177F(E)
Length, mm (in)435 (17.1)
Width, mm (in)370 (14.6)
Height, mm (in)425 (16.7)
Dry weight, kg (lb)25.0 (55.1)

Maintenance data

Maximum speed:3,900 rpm
Idle speed:1,800±200 rpm
Valve clearance
Intake valve0.10-0.15 mm (0.004-0.006 in)
Exhaust valve0.15-0.20 mm (0.006-0.008 in)
Oil system
Oil type4-stroke engines oil
Recommended oil10W-30
Oil capacity1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Ignition system
Ignition timing23°±2° B.T.D.C. (Fixed)
Spark plug gap0.6-0.8 mm (0.024-0.031 in)
Spark plug torque20 N·m; 2.0 kg·m; 14.7 ft·lb
