Kama KM170F

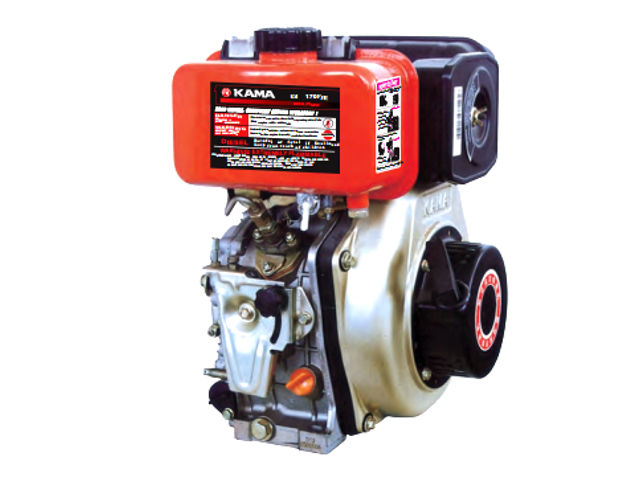

Kama KM170F diesel engineThe Kama KM170F is a 211 cc (12.88 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The KM170F has OHV design, single-cylinder, direct injection system, recoil starter, and crankshaft or camshaft power-take-off.

The KM170F engine cylinder bore is 70.0 mm (2.79 in) and piston stroke is 55.0 mm (2.17 in). Compression ratio rating is 20:1. The continuous rated output power is 3.4 HP (2.5 kW) at 3,000 rpm up to 3.8 HP (2.8 kW) at 3,600 rpm.

General information

Engine Specifications
Model KM170F
Type 4-stroke, single cylinder, diesel engine
Displacement 211 cm 3 (12.88 cu-in)
Max. horsepower 4.2 HP (3.1 kW) at 3,600 rpm
Max. torque
Cooling system Forced-air
Lubricating system Pressure spray compound
Starting system Recoil or electric starter
Fuel used Light diesel oil
Fuel tank capacity 2.5 L (0.55 gal.)

Dimensions and Weight

Kama KM170F
Length, mm (in) 332 (13.07)
Width, mm (in) 348 (13.70)
Height, mm (in) 416 (16.38)
Weight, kg (lb) 26.0 (57.2)

Maintenance data

Engine speed 3,000-3,600 rpm
Valve clearance (cold state) 0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 0.75 l (0.16 gal.)
Fuel system
Injection pressure 200 kg/cm2 (19.6 MPa)
Fuel supply advance angle 17°±1°
