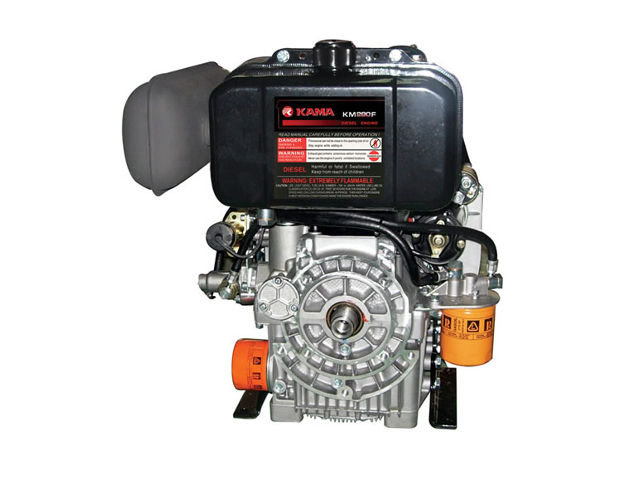

Kama KM290FE

Kama KM290FEThe Kama KM186FAS/E is a 954 cc (58.22 cu.in.) double-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KM290FE engine has OHV design, single-cylinder, direct injection system, and electric starter.

The KM290FE engine cylinder bore is 90.0 mm (3.54 in) and piston stroke is 75.0 mm (2.95 in). The compression ratio rating is 19:1. The engine produced from 18.3 HP (13.5 kW) at 3,000 rpm up to 19.0 HP (14 kW) at 3,600 rpm of maximum horsepower.

General information

Engine Specifications
Model KM290FE
Type 4-stroke, single cylinder, diesel engine
Displacement 954 cc (58.22 cu.in.)
Max. horsepower 19.0 HP (14 kW) at 3,600 rpm
Max. torque
Cooling system Forced-air
Lubricating system Pressure spray compound
Starting system Recoil or electric starter
Fuel used Light diesel oil
Fuel tank capacity 7.0 Liters

Dimensions and Weight

Length, mm (in) 633 (24.92)
Width, mm (in) 559 (22.0)
Height, mm (in) 600 (23.62)
Weight, kg (lb) 78.0 (172.0)

Maintenance data

Engine speed 3,000-3,600 rpm
Valve clearance (cold state) 0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 3.15 l (0.70 gal.)
Fuel system
Injection pressure 200 kg/cm2 (19.6 MPa)
