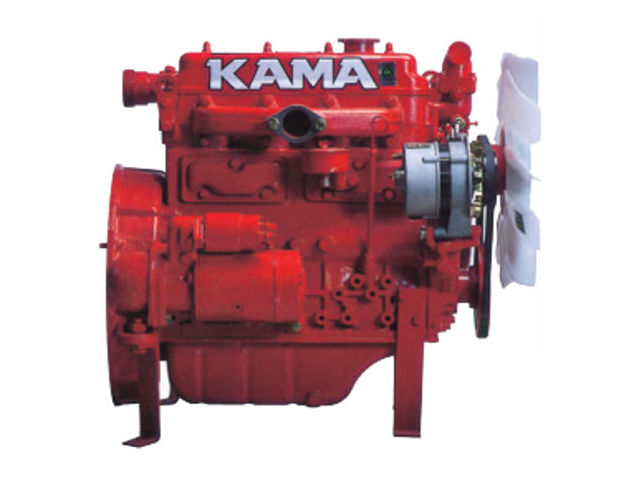

The Kama KM380 is a 1,357 cc (82.80 cu.in.) three-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.
The Kama KM380 engine has OHV design, single-cylinder, direct injection system, and electric starter.
The KM380 engine cylinder bore is 80.0 mm (3.15 in) and piston stroke is 90.0 mm (3.54 in). The compression ratio rating is 18:1. The engine produced 28.6 HP (21 kW) at 3,000 rpm of maximum horsepower.
|Type||4-stroke, single cylinder, diesel engine|
|Displacement||1,357 cc (82.80 cu.in.)|
|Max. horsepower||28.6 HP (21 kW) at 3,000 rpm|
|Lubricating system||Pressure spray compound|
|Starting system||Recoil or electric starter|
|Fuel used||Light diesel oil|
|Fuel tank capacity||5.0 Liters|
Dimensions and Weight
|Length, mm (in)||569 (22.4)|
|Width, mm (in)||525 (20.67)|
|Height, mm (in)||604 (23.78)|
|Weight, kg (lb)||165.0 (363.7)|
|Engine speed||3,000 rpm|
|Oil type||Oil for 4-stroke engines (above CC grade)|
|Recommended oil||SAE 15W-40|
|Oil capacity||3.15 l (0.70 gal.)|
|Injection pressure||200 kg/cm2 (19.6 MPa)|
