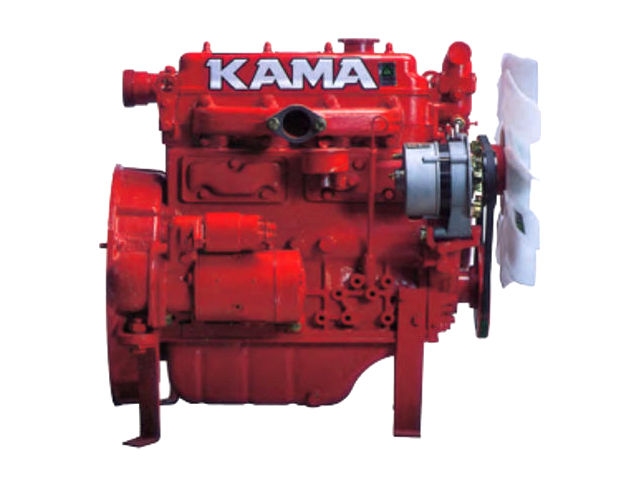

The Kama KM480 is a 1,809 cc (110.38 cu.in.) four-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.
The Kama KM480 engine has OHV design, single-cylinder, direct injection system, and electric starter.
The KM480 engine cylinder bore is 80.0 mm (3.15 in) and piston stroke is 90.0 mm (3.54 in). The compression ratio rating is 18:1. The engine produced 39.4 HP (29 kW) at 3,000 rpm of maximum horsepower.
General information
| Engine Specifications | |
| Model | KM480 |
| Type | 4-stroke, single cylinder, diesel engine |
| Displacement | 1,809 cc (110.38 cu.in.) |
| Max. horsepower | 39.4 HP (29 kW) at 3,000 rpm |
| Max. torque | – |
| Cooling system | Forced-air |
| Lubricating system | Pressure spray compound |
| Starting system | Recoil or electric starter |
| Fuel used | Light diesel oil |
| Fuel tank capacity | 5.0 Liters |
Dimensions and Weight
| Length, mm (in) | 569 (22.4) |
| Width, mm (in) | 525 (20.67) |
| Height, mm (in) | 604 (23.78) |
| Weight, kg (lb) | 195.0 (429.9) |
Maintenance data
| Engine | |
| Engine speed | 3,000 rpm |
| Oil system | |
| Oil type | Oil for 4-stroke engines (above CC grade) |
| Recommended oil | SAE 15W-40 |
| Oil capacity | 3.15 l (0.70 gal.) |
| Fuel system | |
| Injection pressure | 200 kg/cm2 (19.6 MPa) |
