Kohler K662

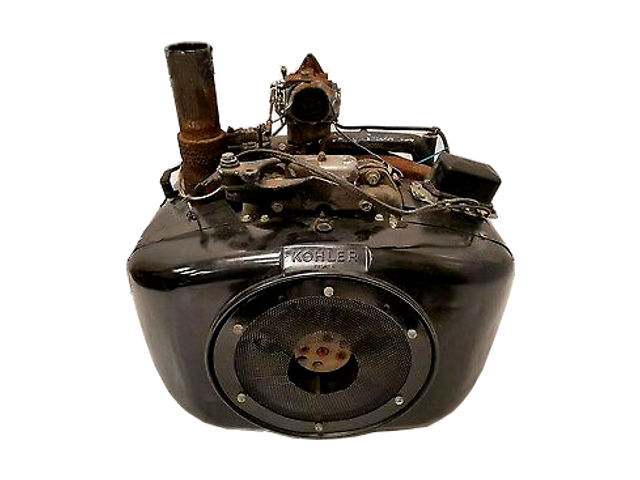

Kohler K662The Kohler K662 is a 1,101 cc (67.20 cu·in) twin-cylinder air-cooled four-stroke internal combustion gasoline engine from K-series, manufactured by Kohler Co.

The Kohler K662 engine has an L-head (side valve) design, horizontal PTO-shaft, and pressurized lubrication system with a positive pressure oil pump. This engine is equipped with a downdraft carburetor and magneto ignition systems. The K662 engine used paper air cleaner (oiled foam pre-cleaner was available as an option) and full-flow type oil filter.

The cylinder bore is 92.0 mm (3.62 in) and the piston stroke is 82.5 mm (3.25 in). This engine produced 24.3 PS (17.9 kW; 24 HP) at 3,600 rpm of horsepower.

The breakdown of the engine code is as follows:

  • K – K-series
  • 66 – Approximate daisplacement (cu·in)
  • 2 – Twin cylinders
  • Suffix (engine is available with the following options):
    S – Electric starter;
    EP – Electric plant;
    Q – Quled model;

General information

Engine Specifications
ModelK662
Type4-stroke, L-head, twin-cylinders
Displacement1,101 cm 3 (67.20 cu-in)
Max. horsepower24.3 PS (17.9 kW; 24 HP) at 3,600 rpm
Max. torque (crank PTO)
Fuel systemDowndraft carburetor
Cooling systemForced-air
Ignition systemMagneto ignition system
Lubricating systemPressurized lubrication
Starting system
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity

Cylinder Block and Head

Cylinder block
Compression ratio:
Bore x Stroke92.0 X 82.5 mm (3.62 x 3.25 in)
Sleeve internal diameter92.0877-92.0623 mm (3.6255-3.6245 in)
Piston skirt outer diameter92.0496-92.0369 mm (3.624-3.6235 in)
Number of piston rings (compression / oil):2 / 1
Ring end gapTop0.254-0.508 mm (0.010-0.020 in)
Second0.254-0.508 mm (0.010-0.020 in)
Connecting rod small end ID22.2428-22.2504 mm (0.8757-0.876 in)
Piston pin outer diameter22.2300-22.2352 mm (0.8752-0.8754 in)
Cylinder Head
Valve Arrangement:L-head (sidevalve)
Valves:2

Tightening torque specs

Tightening torque specs
Cylinder head bolt54 Nm; 5.55 kg·m; 40 ft·lb
Flywheel176 Nm; 17.9 kg·m; 130 ft·lb
Spark plug25-30 Nm; 2.55-3.06 kg·m; 18-22 ft·lb

Service Information

Engine
Max speed3,600 rpm
Valve clearance
Intake valve clearance0.15-0.20 mm (0.006-0.008 in)
Exhaust valve clearance0.43-0.48 mm (0.017-0.019 in)
Oil system
Oil typeAPI SF or SG
Recommended oil Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity Without oil filter: 2.8 L (3.0 US. qt, 2.5 Imp. qt.)
With oil filter: 3.75 L (4.0 US. qt, 3.3 Imp. qt.)
Ignition system
Spark plugChampion: RCJ-8
Spark plug gap0.65 mm (0.0256 in)
