Rato CGP200 (RW167FML)

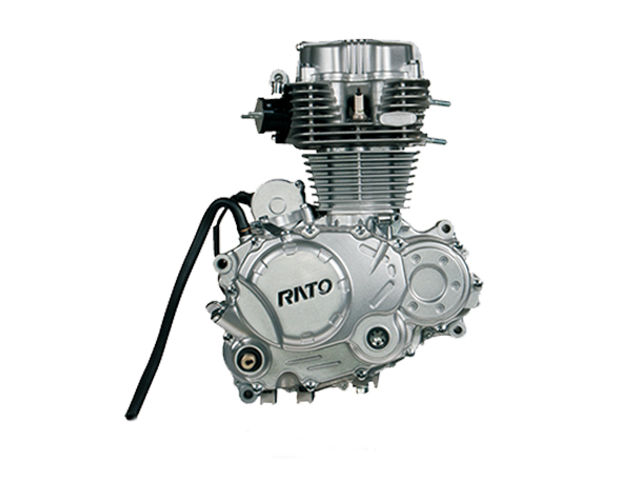

Rato CGP200 (RW167FML)The Rato CGP200 (RW167FML) is a 193.3 ml (11.8 cu-in) single-cylinder air-cooled 4-stroke internal combustion vertical motorcycle engine from Rato CGP-series, manufactured by Chongqing RATO Holding (Group) CO., LTD.

The Rato CGP200 engine uses the front structure of balance shaft to reduce engine vibration and improve stability; hot charging technique of crank and case to reduce the crank noise and extend lifetime. The engine is equipped with capacitance discharge ignition system (CDI), electric or kick starter and 5-speed gearbox with a manual wet multi-plate clutch.

The engine cylinder bore is 63 mm (2.48 in) and piston stroke is 62 mm (2.44 in). The CGP200 (RW167FML) produced 13.9 PS (10.2 kW; 13.7 HP) at 8,000 rpm of maximum horsepower and 14.0 N·m (1.43 kg·m, 10.32 ft·lb) at 6,000 rpm of torque .

General information

Engine Specifications
Model CGP200 (RW167FML)
Type Vertical, four-stroke, single cylinder
Displacement 193.3 ml (11.8 cu-in)
Max. horsepower 13.9 PS (10.2 kW; 13.7 HP) at 8,000 rpm
Max. torque (crank PTO) 14.0 N·m (1.43 kg·m, 10.32 ft·lb) at 6,000 rpm
Clutch method Manual wet multi-plate
Gearshift method 5-speed gearshift
Cooling system Forced-air
Ignition system Capacitance discharge ignition (CDI)
Lubricating system Splash
Starting system Electric / kick
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel consumption 354 g/kw·h

Dimensions and Weight

Rato CGP200 (RW167FML)
Length, mm (in) 340 (13.4)
Width, mm (in) 343 (13.5)
Height, mm (in) 422 (16.6)
Dry weight, kg (lb) 34 (74.9)

Service Information

Oil system
Oil capacity 1.3 L
Ignition system
Spark plug D8RTC
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
