Rato RV340

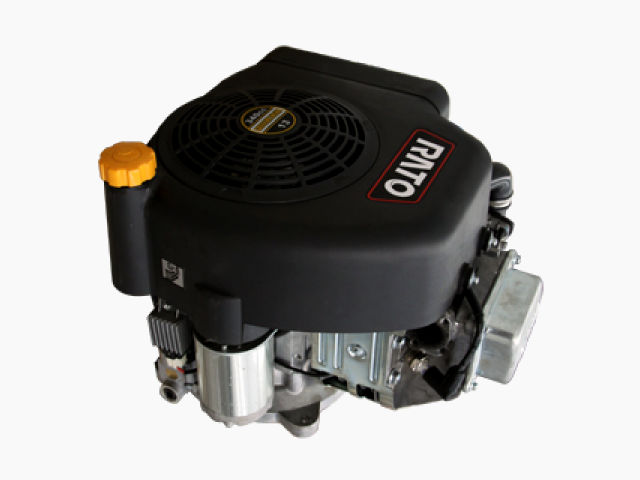

Rato RV340 vertical shaft engineThe Rato RV340 is a 340 cc (20.75 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with vertical shaft, manufactured by Chongqing RATO Holding (Group) CO., LTD.

The Rato RV340 engine has a single-cylinder with a vertical PTO-shaft; an overhead valve (OHV) design; flat suction valve carburetor; dual element air filtration system; Capacitance Discharge Type ignition system (CDI); centrifugal mechanical governor system and electric starter.

The Rato RV340 motor has an 88.0 mm (3.46 in) cylinder bore and 56.0 mm (2.20 in) piston stroke with a compression ratio of 8.5:1. It produced 13.0 HP at 3,600 rpm of horsepower and 11 N·m (1.12 kg·m, 8.11 ft·lb) at 2,500 rpm of torque.

General information

Engine Specifications
Model RV340
Type 4-stroke, OHV, single cylinder
Displacement 340 cm 3 (20.75 cu-in)
Max. horsepower 13.0 HP at 3,600 rpm
Max. torque (crank PTO) 11 N·m (1.12 kg·m, 8.11 ft·lb) at 2,500 rpm
Carburetor Flat suction valve carburetor
Cooling system Forced-air
Ignition system Capacitance Discharge Type (CDI)
Lubricating system Splash
Starting system Recoil / electric starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
PTO shaft rotation Counterclockwise (from PTO shaft side)
Oil system
Oil type 4-stroke or an equivalent (SJ)
Recommended oil SAE 10W-30, 15W-40
Oil capacity 1.1 L
Ignition system
Spark plug NGK: BPR6ES
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
