Tecumseh HH100

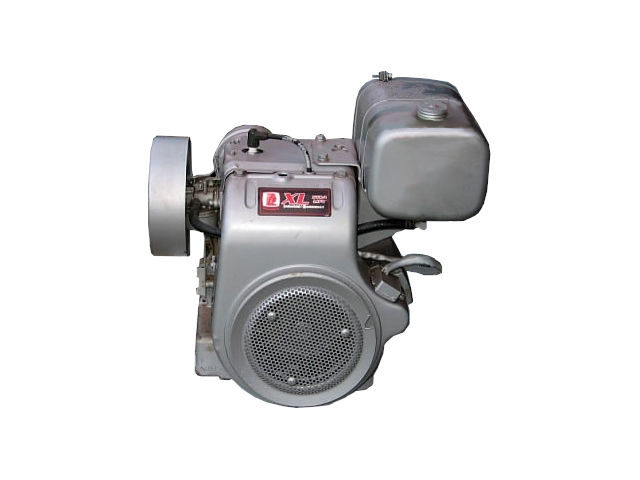

Tecumseh HH100The Tecumseh HH100 is a 389 cc (23.7 cu·in) single-cylinder air-cooled four-stroke internal combustion gasoline engine, manufactured by Tecumseh.

The Tecumseh HH100 engine has an L-head (side valve) design, horizontal PTO shaft, cast-iron cylinder block, and cast-iron cylinder head. This engine can be equipped with Tecumseh or Walbro carburetor and solid-state ignition system (CDI).

The cylinder bore is 84.1 mm (3.31 in) and the piston stroke is 69.8 mm (2.75 in). Compression ratio rating is 6.70:1. This engine produced 10.2 PS (7.5 kW; 10.0 HP) of horsepower.

The breakdown of the engine code is as follows:

  • HH – Horizontal-Heavy Duty
  • 100 – 10.0 HP

General information

Engine Specifications
ModelHH100
Type4-stroke, L-head, single cylinder
Displacement389 cm3 (23.7 cu-in)
Max. horsepower10.2 PS (7.5 kW; 10.0 HP)
Max. torque (crank PTO)–
Fuel systemCarburetor (Tecumseh or Walbro)
Cooling systemForced-air
Ignition systemSolid-state ignition system (CDI)
Lubricating systemSplash type
Starting systemRecoil or electric starter
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity–

Cylinder Block and Head

Cylinder block
Bore x Stroke84.1 X 69.8 mm (3.31 x 2.75 in)
Sleeve internal diameter84.125-84.150 mm (3.312-3.313 in)
Piston skirt outer diameter84.023-84.074 mm (3.308-3.310 in)
Number of piston rings (compression / oil):2 / 1
Ring end gapTop0.178-0.508 mm (0.007-0.02 in)
Second0.178-0.508 mm (0.007-0.02 in)
Piston pin outer diameter17.457-17.463 mm (0.6873-0.6875 in)
Cylinder Head
Valve Arrangement:L-head (sidevalve)
Valves:2
Valve spring free length:47.879 mm (1.885 in)
Camshaft lobe diameter:33.134-33.236 mm (1.3045-1.3085 in)

Tightening torque specs

Tightening torque specs
Cylinder head bolt20.3-27.1 Nm; 2.07-2.76 kg·m; 15-20 ft·lb
Flywheel nut67.8-74.6 Nm; 6.9-7.6 kg·m; 50-55 ft·lb
Spark plug25-30 Nm; 2.55-3.06 kg·m; 18-22 ft·lb

Service Information

–

Valve clearance
Intake valve clearance0.254 mm (0.010 in)
Exhaust valve clearance0.508 mm (0.020 in)
Oil system
Oil typeAPI SF, SJ
Recommended oilSAE 30, 10-W30
Oil capacity1.4 liters (1.5 US.qts, 1.23 Imp. qts)
Ignition system
Spark plugChampion J-8
Spark plug gap0.763 mm (0.03 in)
Fuel system
TypeCarburetor (Tecumseh or Walbro)
Main adjustment screw Tecumseh: 1-3/4 turns
Walbro: 1-1/2 turns off seat
Idle adjustment screw Tecumseh: 1-1/4 turns
Walbro: 1-1/4 turns off seat
