Hatz 1B20

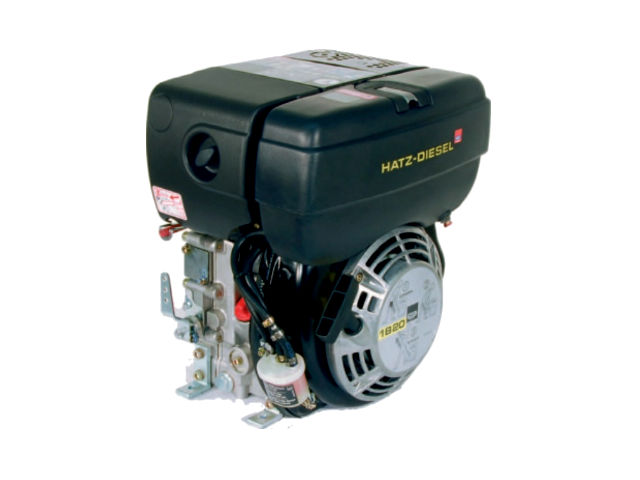

Hatz 1B20The Hatz 1B20 is a 243 cc, (14.83 cu-in) single-cylinder air-cooled 4-stroke internal combustion diesel engine with a horizontal shaft, manufactured by Motorenfabrik Hatz GmbH & Co. KG for general-purpose applications.

This engine has a single cylinder and overhead valves. The Hatz 1B20 engine can be equipped with a recoil starter or electric starter motor 12 or 24 Volts.

A 69.0 mm (2.72 in) cylinder bore and 65.0 mm (2.56 in) piston stroke give the 1B20 engine a total of 243 cc (14.83 cu-in) of displacement. Compression ratio rating is 22:1. It produced from 2.2 HP (1.6 kW) at 1,600 to 4.7 HP (3.5 kW) at 3,600 rpm of maximum output. The torque is 10.5 N·m (1.1 kg·m, 7.7 ft·lb) at 2,500 rpm.

General information

Engine Specifications
Model1B20
Type4-stroke, single cylinder
Displacement243 cm 3 (14.83 cu-in)
Max. horsepower4.7 HP (3.5 kW) at 3,600 rpm
Max. torque (crank PTO)10.5 N·m (1.1 kg·m, 7.7 ft·lb) at 2,500 rpm.
Cooling systemForced-air
Lubricating systemForced spray
Starting systemRecoil starter or electric starter motor
Fuel usedDiesel fuel
Fuel tank capacity3.0 L (0.79 US. gal. 0.66 Imp. gal.)
Fuel consumption
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

1B20
Length, mm (in)304 (12.0)
Width, mm (in)361 (14.2)
Height, mm (in)401 (15.8)
Dry weight, kg (lb) With recoil starter: 28.0 (61.7 )
With electric starter: 32.8 (72.2 )

Service Information

Engine
Maximum speed3,600 ± 150 rpm
Valve clearance
Intake valve0.20 mm (0.008 in)
Exhaust valve0.20 mm (0.008 in)
Oil system
Oil type API CF/CH-4, ACEA: B3/E4
Recommended oilSAE 5W-30, 10W-30
Oil capacity0.9 L (0.95 US. qt, 0.79 Imp. qt.)
Oil pressure
