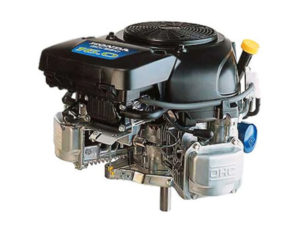

The Honda GCV530 is a small 530 cc (32.3 cu-in) 90° V-twin, air-cooled, four-stroke cycle, internal combustion gasoline engine with vertical shaft, manufactured by Honda Motor Company for general-purpose applications, such as: commercial lawn and garden equipment, tractors, construction and industrial equipment, agricultural equipment, small vehicles.
This engine has two cylinders, integrated cylinder, and head, overhead camshaft, two-barrel carburetor. The Honda GCV530 engine has transistorized magneto ignition, recoil or electric starter. This is the same engine as the Honda GCV520, but it has a different carburetor and as a consequence a higher power and torque.
Cylinder bore and piston stroke are 77.0 mm (3.0 in) and 57.0 mm (2.2 in), respectively. Compression ratio rating is 8.0:1.
The GCV530 gasoline engine produces 16.2 PS (11.9 KW; 16.0 HP) at 3,600 rpm of max horsepower and 36.5 Nm (3.7 kg·m; 26.9 lbf·ft) at 2,500 rpm of peak torque.
General information
| Engine Specifications | |
| Model | GCV530 (vertical shaft) |
| Type | 4-stroke, OHC, V-twin 90° |
| Displacement | 530 cm 3 (32.3 cu-in) |
| Max. horsepower | 16.2 PS (11.9 KW; 16.0 HP) at 3,600 rpm |
| Max. torque (crank PTO) | 36.5 N·m (3.72 kg·m, 26.9 ft·lb) at 2,500 rpm |
| Carburetor | Horizontal type, two barrels, butterfly valve |
| Cooling system | Forced-air |
| Ignition system | Transistorized magneto ignition |
| Lubricating system | Splash |
| Starting system | Recoil or electric starter |
| Stoping system | Ignition primary circuit ground |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | – |
| Fuel consumption | 230 g/HPh |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Dimensions and Weight
| GCV530 | |
| Length, mm (in) | 456 (18.0) |
| Width, mm (in) | 427 (16.8) |
| Height, mm (in) | 331 (13.0) |
| Dry weight, kg (lb) | 30.5 (67.2) |
| Operating weight, kg (lb) |
31.5 (69.4) |
Cylinder Block and Head
| Cylinder block | ||
| Compression ratio: | 8.0:1 | |
| Bore x Stroke | 77.0 mm X 57.0 mm (3.0 x 2.2 in) | |
| Sleeve internal diameter | 77.00 mm (3.031 in) | |
| Piston skirt outer diameter | 76.985 mm (3.1096 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Piston ring side clearance (Top): | 0.050-0.080 mm (0.0020-0.0031 in) | |
| Piston ring side clearance (Second): | 0.030-0.060 mm (0.0012-0.0024 in) | |
| Piston ring end gap (Top): | 0.200-0.400 mm (0.008-0.016 in) | |
| Piston ring end gap (Second): | 0.200-0.400 mm (0.008-0.016 in) | |
| Ring width (Top): | 1.990 mm (0.0783 in) | |
| Ring width (Second): | 1.990 mm (0.0783 in) | |
| Connecting rod small end ID | 18.005 mm (0.7089 in) | |
| Connecting rod big end ID | 35.025 mm (1.3789 in) | |
| Crankpin outer diameter | 34.985 mm (1.3774 in) | |
| Main journal outer diameter |
PTO side: 30.993 mm (1.2202 in) Flywheel side: 34.993 mm (1.3777 in) |
|
| Cylinder Head | ||
| Warpage (limit) | 0.10 mm (0.004 in) | |
| Valve Arrangement: | OHC | |
| Valves: | 4 (2 pre cylinder) | |
| Valve stem outer diameter (INTAKE): | 5.485 mm (0.2159 in) | |
| Valve stem outer diameter (EXHAUST): | 5.440 mm (0.214 in) | |
| Valve guide inner diameter (INTAKE): | 5.500 mm (0.2165 in) | |
| Valve guide inner diameter (EXHAUST): | 5.500 mm (0.2165 in) | |
| Spring free length | 34.0 mm (1.34 in) | |
| Cam height: | 40.251 mm (1.5847 in) | |
| Cam pulley shaft outer diameter: | 9.987 mm (0.3932 in) | |
| Rocker arm internal diameter: | 6.000 mm (0.2362 in) | |
| Rocker arm shaft outer diameter: | 5.990 mm (0.2358 in) | |
Tightening torque specs
| Tightening torque specs | |
| Cylinder nut | 32 Nm; 3.3 kg·m; 24 ft·lb |
| Connecting rod bolt | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Oil drain bolt | 44 Nm; 4.5 kg·m; 33 ft·lb |
| Oil filter holder | 18 Nm; 1.8 kg·m; 13 ft·lb |
| Oil filter | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Valve adjusting lock nut | 7.5 Nm; 0.75 kg·m; 5.4 ft·lb |
| Governor fork screw | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| Flywheel bolt | 157 Nm; 16.0 kg·m; 116 ft·lb |
| Ignition coil stud bolt | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Fuel pump screw | 3 Nm; 0.3 kg·m; 2.2 ft·lb |
| Breather valve bolt | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| Oil pan bolt | 24 Nm; 2.4 kg·m; 17 ft·lb |
| Starter solenoid nut | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Starter solenoid terminal nut | 9 Nm; 0.9 kg·m; 6.5 ft·lb |
| Through bolt | 7 Nm; 0.7 kg·m; 5.1 ft·lb |
| Fuel drain screw | 4 Nm; 0.4 kg·m; 2.9 ft·lb |
| Air vent cover screw | 2 Nm; 0.2 kg·m; 1.4 ft·lb |
| Others | |
| 5 mm bolts, nuts | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| 6 mm bolts, nuts | 10 Nm; 1.0 kg·m; 7 ft·lb |
| 8 mm bolts, nuts | 24 Nm; 2.4 kg·m; 17 ft·lb |
| 10 mm bolts, nuts | 37 Nm; 3.7 kg·m; 27 ft·lb |
| 12 mm bolts, nuts | 55 Nm; 5.5 kg·m; 39.5 ft·lb |
Service Information
| Engine | |
| Maximum speed | 3,000 ± 150 rpm |
| Idle speed | 1,400 ± 150 rpm |
| Cylinder compression | 6.0-8.0 kg/cm2 (85-114 psi) at 600 rpm |
| Valve clearance | |
| Intake valve | 0.10 ± 0.04 mm (0.004 ± 0.002 in) |
| Exhaust valve | 0.15 ± 0.04 mm (0.006 ± 0.002 in) |
| Oil system | |
| Oil type | Honda 4-stroke or an equivalent (SE or SF) |
| Recommended oil | SAE 10W-30 |
| Oil capacity | 1.3 liters (1.4 US.qts, 1.15 Imp. qts) |
| Ignition system | |
| Ignition timing | 20° B.T.D.C. |
| Spark plug | NGK: BPR5ES DENSO: W16EPR-U |
| Spark plug gap | 0.7-0.8 mm (0.028-0.031 in) |
| Primary ignition coil resistance | 1.0-1.2 Ω |
| Secondary ignition coil N1 resistance | 9.2-14.0 kΩ |
| Secondary ignition coil N2 resistance | 9.8-14.8 kΩ |
| Ignition coil air gap | 0.2-0.6 mm (0.008-0.024 in) |
| Carburetor | |
| Main jet |
N.1 #87.5; N.2 #90 |
| Pilot jet | N.1,2 #37.5 |
| Float height | 18.5 mm (0.73 in) |
| Pilot screw opening |
N.1 1-5/8 turns out N.2 1-11/16 turns out |
