Honda GV100 K1

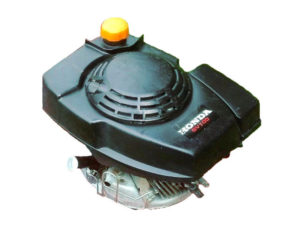

Honda GV100 engineThe Honda GV100 is a 97 cc (5.9 single-cylinder air-coolled four-stroke internal combustion small gasoline engine with vertical shaft manufactured by Honda Motor Company.

The Honda GV100 engine has a side-valve design with camshaft driven by a timing chain. It has a recoil starter, horizontal butterfly type carburetor, and flywheel magneto ignition system.

The cylinder bore is 52.0 mm (2.04 in) and the piston stroke is 46.0 mm (1.81 in). Compression ratio rating is 6.5:1. The Honda GV100 motor produced 2.6 HP (1.9 kW) at 4200 rpm of horsepower and 4.3 Nm (0.43 kg·m) at 3000 rpm of torque.

General information

Engine Specifications
Model GV100 K1
Type 4-stroke, side valve, single cylinder
Displacement 97 cm 3 (5.9 cu-in)
Max. horsepower 2.6 HP (1.9 kW) at 4200 rpm
Max. torque 4.3 Nm (0.43 kg·m) at 3000
Carburetor Horizontal type butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash type
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 0.9 L (0.24 US gal, 0.20 lmp gal)
PTO shaft rotation Counterclockwise (from PTO shaft side)

Dimensions and Weight

Honda GV100 K1
Length, mm (in) 390 (15.35)
Width, mm (in) 357 (14.05)
Height, mm (in) 227 (8.97)
Dry weight, kg (lb) 8.9 (19.6)

Cylinder Block and Head

The piston has two compression rings and one oil ring. Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

Cylinder block
Compression ratio: 6.5:1
Bore x Stroke 52 X 46 mm (2.04 x 1.81 in)
Sleeve internal diameter 52.00 mm (2.0472 in)
Piston skirt outer diameter 51.995 mm (2.0470 in)
Number of piston rings (compression / oil): 2 / 1
Ring side clearance Top/second/oil 0.100-0.135 mm (0.004-0.006 in)
Ring end gap Top/second 0.15-0.30 mm (0.006-0.012 in)
Oil 0.20-0.70 mm (0.008-0.030 in)
Connecting rod small end ID 10.006 mm (0.395 in)
Connecting rod big end ID 18.000 mm (0.709 in)
Crankshaft crank pin outer diameter 17.984 mm (0.7080 in)
Cylinder Head
Warpage (limit) 0.10 mm (0.004 in)
Valve Arrangement: Side valve (L-head)
Valves: 2
Stem outer diameter (standard): INTAKE 5.490 mm (0.0.2161 in)
EXHAUST 5.445 mm (0.2144 in)
Cam height: INTAKE 21.82 mm (0.859 in)
EXHAUST 21.82 mm (0.859 in)
Valve spring free length: 27.1 mm (1.07 in)


Maximum speed 3000 rpm
Idle speed 2000 ± 150 rpm
Cylinder compression 2.0-4.0 kg/cm2 at 600 rpm
8.2 kg/cm2 at 1200 rpm
Valve clearance
Intake valve 0.08-0.16 mm (0.031-0.0063 in)
Exhaust valve 0.08-0.16 mm (0.031-0.0063 in)
Main jet #58
Float height 12.0±1.5 mm (0.42-0.52 in)
Pilot screw opening 2 3/8
Oil system
Oil type Honda 4-stroke or an equivalent (SG.SF/CC.CD)
Recommended oil SAE 10W-30
Oil capacity 0.4 L (0.42 US qt, 0.35 lmp qt)
Ignition system
Ignition timing 20 ° B.T.D.C (Fixed)
Spark plug NGK: BMR-4A
Spark plug gap 0.6-0.7 mm (0.024-0.028 in)
Primary ignition coil resistance 0.7-0.9 kΩ
Secondary ignition coil resistance 6.3-7.7 kΩ
Clearance to flywheel (air gap) 0.2-0.6 mm (0.008-0.024 in)

Tightening torque specs

Tightening torque specs
Cylinder head (6 mm bolts, nuts) 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
Oil pan 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
Connecting rod cap (5 mm bolt) 4-6 Nm; 0.4-0.6 kg·m; 2.9-4.3 ft·lb
Carburetor (5 mm nuts) 4-6 Nm; 0.4-0.6 kg·m; 2.9-4.3 ft·lb
Governor arm (6 mm nut) 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
Flywheel (12 mm nut) 45-55 Nm; 4.5-5.5 kg·m; 32-40 ft·lb
Side plate 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
Tappet cover 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
Air cleaner case 7-10 Nm; 0.7-1.0 kg·m; 5.1-7.2 ft·lb
Muffler 13-17 Nm; 1.3-1.7 kg·m; 9.4-12 ft·lb
5 mm bolts, nuts 4-7 Nm; 0.4-0.7 kg·m; 2.9-5.1 ft·lb
6 mm bolts, nuts 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
8 mm bolts, nuts 20-28 Nm; 2.0-2.8 kg·m; 14.5-20.3 ft·lb
10 mm bolts, nuts 35-40 Nm; 3.5-4.0 kg·m; 25-29 ft·lb
