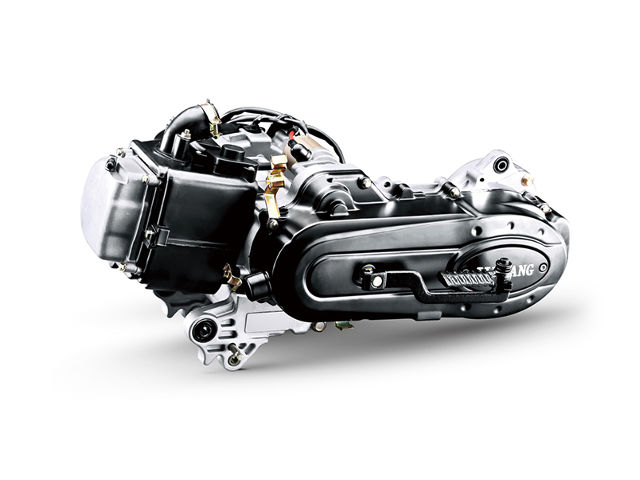

The Jinlang 1P47QMD is a 0.07 l (72 cc, 4.39 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.
It has a 47 mm (1.85 in) cylinder bore and 41.5 mm (1.63 in) piston stroke, compression ratio rating is 10.3:1. The 1P47QMD produced 4.1 PS (3.05 kW; 4.0 HP) at 8,000 rpm of maximum horsepower and 4.2 Nm (0.4 kg·m; 3.1 ft·lb) at 6,500 rpm of torque. Minimum idling speed is 2,000 rpm.
General information
| Engine Specifications | |
| Model | Jinlang 1P47QMD |
| Type | Four-stroke, single cylinder |
| Displacement | 72.0 ml (4.39 cu-in) |
| Max. horsepower | 4.1 PS (3.05 KW; 4.0 HP) at 8,000 rpm |
| Max. torque (crank PTO) | 4.2 Nm (0.4 kg·m; 3.1 ft·lb) at 6,500 rpm |
| Cooling system | Forced-air |
| Ignition system | Capacitance discharge ignition (CDI) |
| Lubricating system | Splash |
| Starting system | Electric / kick |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
Dimensions and Weight
| JL 1P47QMD | |
| Length, mm (in) | 620 (24.4) |
| Width, mm (in) | 390 (15.4) |
| Height, mm (in) | 310 (12.2) |
| Dry weight, kg (lb) | 21.5 (47.4) |
