Jinlang 1P52QMI-2B

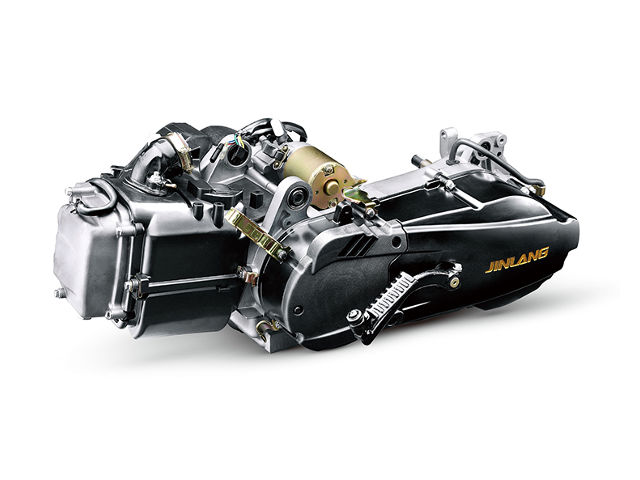

Jinlang 1P52QMI-2BThe Jinlang 1P52QMI-2B is a 124.6 ml (7.8 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

The 1P52QMI-2B engine cylinder bore is 52.4 mm (2.06 in) and the piston stroke is 57.8 mm (2.28 in) and compression ratio rating is 9.5:1. The Jinlang 1P52QMI-2B produced 9.2 PS (6.8 kW; 9.1 HP) at 7,500 rpm of maximum horsepower and 9.0 Nm (0.92 kg·m; 6.64 ft·lb) at 6,000 rpm of torque. Minimum idling speed 1,700 rpm.

General information

Engine Specifications
ModelJinlang 1P52QMI-2B
TypeFour-stroke, single cylinder
Displacement124.6 ml (7.8 cu-in)
Max. horsepower9.2 PS (6.8 KW; 9.1 HP) at 7,500 rpm
Max. torque (crank PTO)9.0 Nm (0.92 kg·m; 6.64 ft·lb) at 6,000 rpm
Cooling systemForced-air
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemKick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

Length, mm (in)660 (26.0)
Width, mm (in)460 (18.1)
Height, mm (in)310 (12.2)
Dry weight, kg (lb)27.0 (59.5)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
