Jinlang 1P69MM

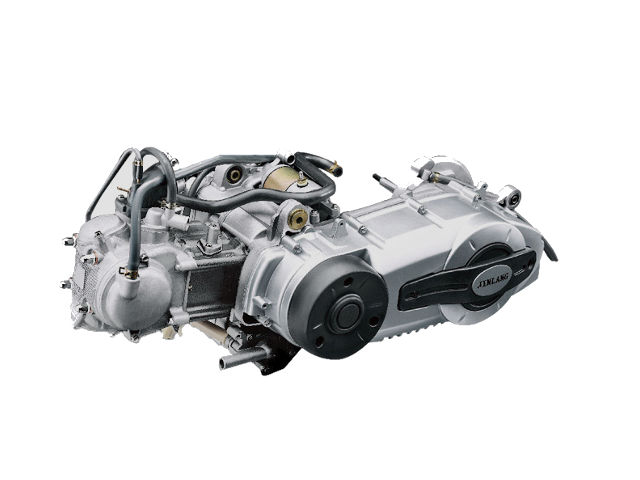

Jinlang 1P69MMThe Jinlang 1P65QML is a 0.25 l (249.6 cc, 15.23 cu-in) single cylinder, 4-stroke, forced water-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

Bore and stroke are 69 mm (2.72 in) and 66.8 mm (2.63 in), respectively. Compression ratio rating is 10:1. The Jinlang 1P69MM produced 16.3 PS (12 kW; 16.0 HP) at 6,500 rpm of maximum horsepower and 20 Nm (2.0 kg·m; 14.8 ft·lb) at 6,000 rpm of torque. Minimal idling speed 1,500 rpm.

General information

Engine Specifications
ModelJinlang 1P69MM
TypeFour-stroke, single cylinder
Displacement249.6 cc (15.23 cu-in)
Max. horsepower16.3 PS (12 KW; 16.0 HP) at 6,500 rpm
Max. torque (crank PTO)20 Nm (2.0 kg·m; 14.8 ft·lb) at 6,000 rpm
Cooling systemWater-cooled
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemKick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

JL 1P69MM
Length, mm (in)800 (31.5)
Width, mm (in)500 (19.7)
Height, mm (in)425 (16.7)
Dry weight, kg (lb)29 (63.9)
