Kama KG200

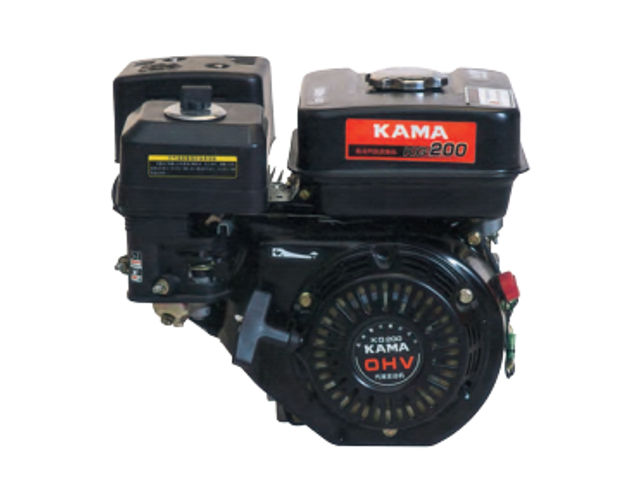

Kama GK200The Kama KG200 is a 196 cc (11.96 cu.in.) single-cylinder, air-cooled, four-stroke cycle, internal combustion small gasoline engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KG200 engine has OHV (overhead valve) design and recoil starter. The compression ratio rating is 8.5:1, cylinder bore and the piston stroke are 68.0 mm (2.68 in) and 54.0 mm (2.12 in), respectively.

The Kama KG200 produced 5.5 PS (4.0 KW; 5.5 HP) at 2,500 rpm of horsepower and 10.8 Nm (1.1 kg·m; 7.97 lbf·ft) at 2,500 rpm of peak torque .

General information

Engine Specifications
Model KG200
Type 4-stroke, single cylinder
Displacement 196 cm 3 (11.96 cu-in)
Max. horsepower 5.5 PS (4.0 KW; 5.5 HP) at 2,500 rpm
Max. torque 10.8 Nm (1.1 kg·m; 7.97 lbf·ft) at 2,500 rpm
Carburetor Horizontal, butterfly valve
Cooling system Forced-air
Lubricating system Splash system
Starting system Recoil starter
Stoping system Ground switch
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 3.6 liters (3.8 US.qts, 3.2 Imp. qts)
PTO shaft rotation Clockwise (view from flywheel)

Dimensions and Weight

Kama KG200
Length, mm (in) 313 (12.3)
Width, mm (in) 376 (14.8)
Height, mm (in) 335 (13.2)
Weight, kg (lb) 14.0 (30.8)

Maintenance data

Engine
Engine speed 3,600 ± 150 rpm
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 0.6 liters (0.63 US.qts, 0.53 Imp. qts)
