Kama KG270

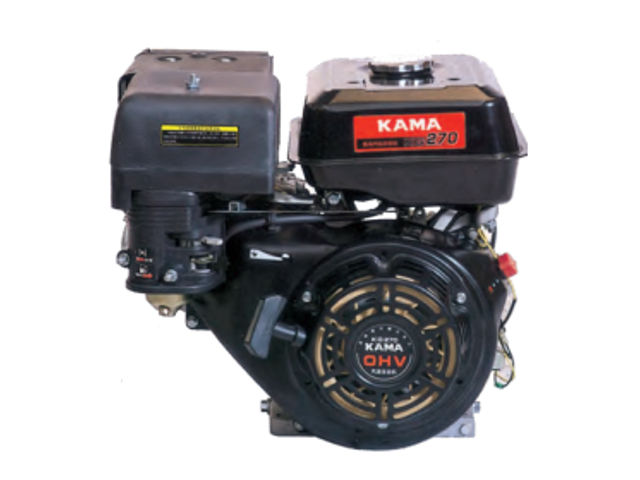

Kama GK270The Kama KG270 is a 270 cc (16.48 cu.in.) single-cylinder air-coolled 4-stroke internal combustion small gasoline engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KG270 has OHV design and recoil starter. The KG270 engine compression ratio rating is 8.5:1, cylinder bore and piston stroke are 77.0 mm (3.03 in) and 58.0 mm (2.28 in), respectively.

The Kama KG270 produced 7.5 HP (5.5 kW) at 3,600 rpm of maximum horsepower and 16.5 N·m (1.68 kg·m, 12.17 lbf·ft) at 2,500 rpm of peak torque.

General information

Engine Specifications
Model KG270
Type 4-stroke, single cylinder
Displacement 270 cm 3 (16.48 cu-in)
Max. horsepower 7.5 HP (5.5 kW) at 3,600 rpm
Max. torque 16.5 N·m (1.68 kg·m, 12.17 lbf·ft) at 2,500 rpm
Carburetor Horizontal, butterfly valve
Cooling system Forced-air
Lubricating system Splash system
Starting system Recoil starter
Stoping system Ground switch
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 6.0 liters (6.34 US.qts, 5.28 Imp. qts)
PTO shaft rotation Clockwise (view from flywheel)

Dimensions and Weight

Kama KG270
Length, mm (in) 380 (15.0)
Width, mm (in) 430 (16.9)
Height, mm (in) 410 (16.1)
Weight, kg (lb) 25.0 (55.0)

Maintenance data

Engine
Engine speed 3,600 ± 150 rpm
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 1.1 liters (1.16 US.qts, 0.97 Imp. qts)
