Kama KM12DL-500F/E

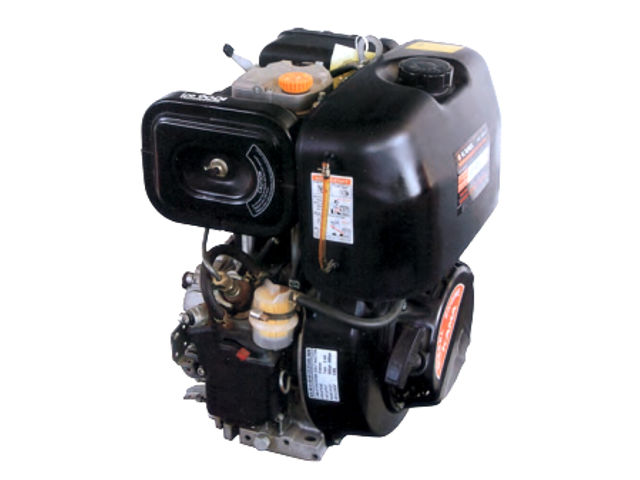

Kama KM12DL-500F/E diesel engineThe Kama KM12DL-500F/E is a 505 cc (30.82 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KM12DL has OHV design, direct injection system, recoil or electric starter.

The KM12DL-500F/E engine cylinder bore and piston stroke are 87.0 mm (3.43 in) and 85.0 mm (3.35 in), respectively. The Kama KM12DL-500F/E produced from 9.8 HP (7.2 kW) at 3,000 rpm up to 10.2 HP (7.5 kW) at 3,600 of horsepower.

General information

Engine Specifications
ModelKM12DL-500F/E
Type4-stroke, single cylinder, diesel engine
Displacement505 cm 3 (30.82 cu-in)
Max. horsepower10.2 HP (7.5 kW) at 3,600 rpm
Max. torque
Cooling systemForced-air
Lubricating systemPressure spray compound
Starting systemRecoil or electric starter
Fuel usedLight diesel oil
Fuel tank capacity5.5 L (1.21 gal.)

Dimensions and Weight

Kama KM12DL-500F/E
Length, mm (in)385 (15.8)
Width, mm (in)435 (17.1)
Height, mm (in)492 (19.37)
Weight, kg (lb)55.0 (121.3)

Maintenance data

Engine
Engine speed3,000-3,600 rpm
Valves
Valve clearance (cold state)0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil typeOil for 4-stroke engines (above CC grade)
Recommended oilSAE 10W-30
Oil capacity1.5 l (0.33 gal.)
Fuel system
Injection pressure200 kg/cm2 (19.6 MPa)
Fuel supply advance angle15°-16°
