Kama KM170FAX

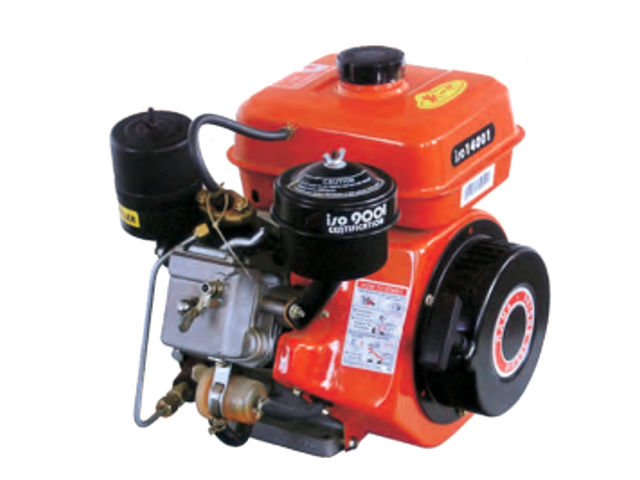

Kama KM170FAXThe Kama KM170FAX is a 208 cc (12.7 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD (China).

The KM170FAX has OHV design, single-cylinder, direct injection system, and recoil starter.

The KM170FAX engine cylinder bore is 70.0 mm (2.79 in) and piston stroke is 54.0 mm (2.13 in). The engine produced 3.8 HP (2.8 kW) at 3,000 rpm of maximum horsepower. The continuous rated output power is 3.4 HP (2.5 kW) at 3,000 rpm.

General information

Engine Specifications
Type4-stroke, single cylinder, diesel engine
Displacement208 cm 3 (12.7 cu-in)
Max. horsepower3.8 HP (2.8 kW) at 3,000 rpm
Max. torque
Cooling systemForced-air
Lubricating systemPressure spray compound
Starting systemRecoil starter
Fuel usedLight diesel oil
Fuel tank capacity2.5 L (0.55 gal.)

Dimensions and Weight

Length, mm (in)313 (13.32)
Width, mm (in)396 (135.59)
Height, mm (in)335 (13.19)
Weight, kg (lb)16.0 (35.3)

Maintenance data

Engine speed3,000 rpm
Valve clearance (cold state)0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil typeOil for 4-stroke engines (above CC grade)
Recommended oilSAE 10W-30
Oil capacity0.5 l (0.11 gal.)
Fuel system
Injection pressure200 kg/cm2 (19.6 MPa)
Fuel supply advance angle22°±1°
