Kama KM170FB/E

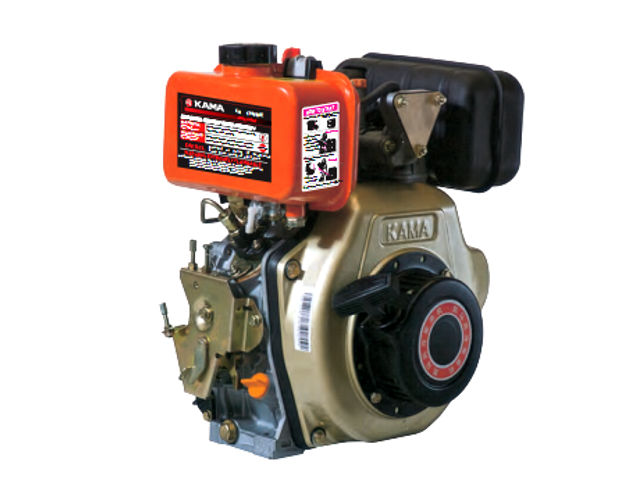

Kama KM170FB/E diesel engineThe Kama KM170FB/E is a 226 cc (13.80 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The KM170FB/E has OHV design, direct injection system, and recoil or electric starter.

The KM170FB/E engine cylinder bore and piston stroke are 70.0 mm (2.79 in) and 59.0 mm (2.32 in), respectively. The Kama KM170FB/E produced from 4.2 HP (3.1 kW) at 3,000 rpm up to 4.8 HP (3.5 kW) at 3,600 rpm of maximum horsepower. The continuous rated output power is 3.8 HP (2.8 kW) at 3,000 rpm up to 4.2 HP (3.1 kW) at 3,600 rpm.

General information

Engine Specifications
Model KM170FB/E
Type 4-stroke, single cylinder, diesel engine
Displacement 226 cm 3 (13.80 cu-in)
Max. horsepower 4.8 HP (3.5 kW) at 3,600 rpm
Max. torque
Cooling system Forced-air
Lubricating system Pressure spray compound
Starting system Recoil or electric starter
Fuel used Light diesel oil
Fuel tank capacity 2.5 L (0.55 gal.)

Dimensions and Weight

Kama KM170FB/E
Length, mm (in) 335 (13.19)
Width, mm (in) 380 (14.96)
Height, mm (in) 415 (16.39)
Weight, kg (lb) 26.0 (57.2)

Maintenance data

Engine speed 3,000-3,600 rpm
Valve clearance (cold state) 0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 0.75 l (0.15 gal.)
Fuel system
Injection pressure 200 kg/cm2 (19.6 MPa)
Fuel supply advance angle 22°±1°
