Kama KM170F/E

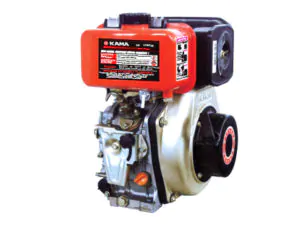

Kama KM170FE diesel engineThe Kama KM170F/E is a 211 cc (12.88 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The KM170FE has OHV design, single-cylinder, direct injection system, and recoil or electric starter.

The KM170FE engine cylinder bore is 70.0 mm (2.79 in) and piston stroke is 55.0 mm (2.17 in). The engine produced from 3.8 HP (2.8 kW) at 3,000 rpm up to 4.2 HP (3.1 kW) at 3,600 rpm of maximum horsepower. The continuous rated output power is 3.4 HP (2.5 kW) at 3,000 rpm up to 3.8 HP (2.8 kW) at 3,600 rpm.

General information

Engine Specifications
Type4-stroke, single cylinder, diesel engine
Displacement211 cm 3 (12.88 cu-in)
Max. horsepower4.2 HP (3.1 kW) at 3,600 rpm
Max. torque
Cooling systemForced-air
Lubricating systemPressure spray compound
Starting systemRecoil or electric starter
Fuel usedLight diesel oil
Fuel tank capacity2.5 L (0.55 gal.)

Dimensions and Weight

Kama KM170FE
Length, mm (in)335 (13.19)
Width, mm (in)380 (14.96)
Height, mm (in)415 (16.39)
Weight, kg (lb)26.0 (57.2)

Maintenance data

Engine speed3,000-3,600 rpm
Valve clearance (cold state)0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil typeOil for 4-stroke engines (above CC grade)
Recommended oilSAE 10W-30
Oil capacity0.75 l (0.16 gal.)
Fuel system
Injection pressure200 kg/cm2 (19.6 MPa)
Fuel supply advance angle17°±1°
