Kama KM186FA/E

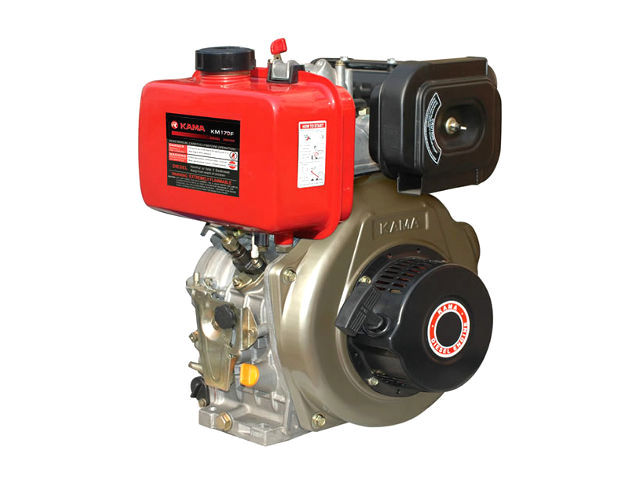

Kama KM186FA/EThe Kama KM186FA/E is a 418 cc (25.5 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine with horizontal shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KM186FA/E engine has OHV design, single-cylinder, direct injection system, and recoil or electric starter.

The KM186FAE engine cylinder bore is 86.0 mm (3.39 in) and piston stroke is 72.0 mm (2.83 in). The engine produced from 9.0 HP (6.6 kW) at 3,000 rpm up to 10.0 HP (7.35 kW) at 3,600 rpm of maximum horsepower. The continuous rated output power is 8.0 HP (5.9 kW) at 3,000 rpm up to 9.0 HP (6.6 kW) at 3,600 rpm.

General information

Engine Specifications
Model KM186FA/E
Type 4-stroke, single cylinder, diesel engine
Displacement 418 cm 3 (25.5 cu-in)
Max. horsepower 10.0 HP (7.35 kW) at 3,600 rmp
Max. torque
Cooling system Forced-air
Lubricating system Pressure spray compound
Starting system Recoil or electric starter
Fuel used Light diesel oil
Fuel tank capacity 5.5 L (1.21 gal.)

Dimensions and Weight

Length, mm (in) 420 (16.54)
Width, mm (in) 440 (17.32)
Height, mm (in) 495 (19.49)
Weight, kg (lb) 48.0 (105.6)

Maintenance data

Engine
Engine speed 3,000-3,600 rpm
Valves
Valve clearance (cold state) 0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 1.65 l (0.36 gal.)
Fuel system
Injection pressure 200 kg/cm2 (19.6 MPa)
Fuel supply advance angle 21°±1°
