Kama KM192FS / KM192F

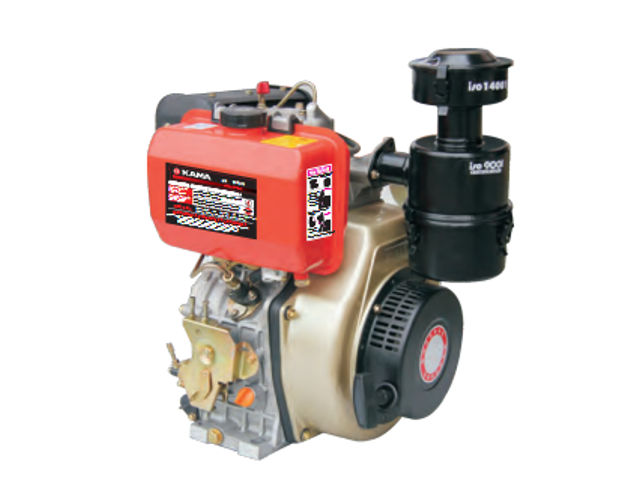

Kama KM192FSThe Kama KM192FS is a 499 cc (30.46 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The Kama KM192FS has OHV design, direct injection system, recoil or electric starter.

The KM192FS engine cylinder bore and piston stroke is 92.0 mm (3.62 in) and 75.0 mm (2.95 in), respectively. The Kama KM192FS produced from 9.8 HP (7.2 kW) up to 10.5 HP (7.7 kW) of horsepower. The KM192FS has 1,500-1,800 of engine speed end the KM192F has 3,000-3,600 rpm with the same maximum power output.

General information

Engine Specifications
ModelKM192FS / KM192F
Type4-stroke, single cylinder, diesel engine
Displacement499 cm 3 (30.46 cu-in)
Max. horsepower10.5 HP (7.7 kW)
Max. torque
Cooling systemForced-air
Lubricating systemPressure spray compound
Starting systemRecoil or electric starter
Fuel usedLight diesel oil
Fuel tank capacity5.5 L (1.21 gal.)

Dimensions and Weight

Kama KM192FS
Length, mm (in)422 (16.61)
Width, mm (in)460 (18.11)
Height, mm (in)498 (19.61)
Weight, kg (lb)52.0 (114.4)

Maintenance data

Engine
Engine speedKM192FS: 1,500-1,800 rpm
KM192F: 3,000-3,600 rpm
Valves
Valve clearance (cold state)0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil typeOil for 4-stroke engines (above CC grade)
Recommended oilSAE 10W-30
Oil capacity1.65 l (0.36 gal.)
Fuel system
Injection pressure200 kg/cm2 (19.6 MPa)
Fuel supply advance angle23°-24°
