Nissan CA16DE

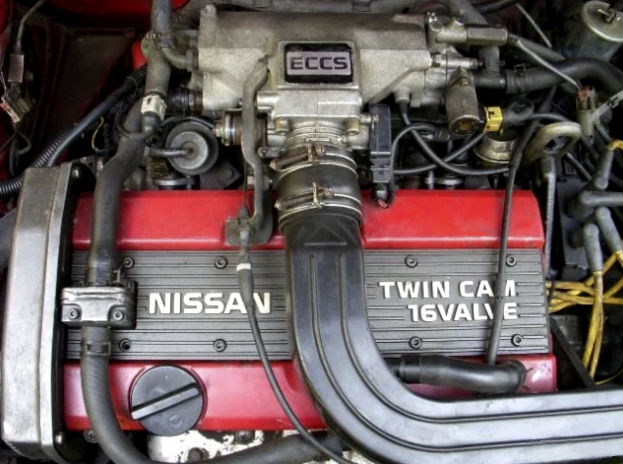

Nissan CA16DE engineThe Nissan CA16DE is a 1.6 liter (1,598 cc, 97.51 cu in) straight-4, four-stroke cycle gasoline engine from Nissan CA-family. The Nissan CA16DE engine was produced from 1987 through 1989.

This engine has DOHC (double overhead camshaft) design with four valves per cylinder (16 valves in total), cast-iron block and an aluminum cylinder head; fully balanced five-bearing crankshaft. The engine is equipped with an electronic fuel injection system EGI (ECCS). North American versions of the CA16DE engine used Nissan induction control system (NICS), which opened up the secondary intake ports to each cylinder via a butterfly valve in each port. This system is activated at 3,900 rpm and improved flow and performance resultingly.

Bore and stroke are 78.0 mm (3.07 in) and 83.6 mm (3.29 in), respectively. Compression ratio rating of 10.0:1. The engine produced 120 PS (88 kW; 118 HP) at 6,400 rpm of maximum horsepower and 137 Nm (14.0 kg·m; 101.1 ft·lb) at 5,200 rpm of torque.

The breakdown of the engine code is as follows:

  • CA – Engine Family
  • 16 – 1.6 Liter Displacement
  • D – DOHC (Dual Overhead Camshafts)
  • E – Multi Point Fuel Injection

General information

Engine Specifications
Engine codeCA16DE
LayoutFour stroke, Inline-4 (Straight-4)
Fuel typeGasoline
Production1987-1989
Displacement1.6 L, 1,598 cm3 (97.51 cu in)
Fuel systemMultiport Fuel Injection
Power adderNone
Max. horsepower120 PS (88 KW; 118 HP) at 6,400 rpm
Max. torque137 Nm (14.0 kg·m; 101.1 ft·lb) at 5,200 rpm
Firing order1-3-4-2
Dimensions (L x H x W):
Weight

Cylinder block

The Nissan CA16DE motor has a cast-iron cylinder block. The cylinder block, a monoblock special casting structure, employs a five-bearing-support system. The CA16DE engine cylinder bore is 78.0 mm (3.07 in) and the piston stroke is 83.6 mm (3.291 in), compression ratio rating is 10.0:1.

The pistons are each fitted with two compression rings and a single oil ring. The cylinder block height is 204.8 mm (8.06 in).

Cylinder block
Cylinder block alloyCast iron
Compression ratio:10.0:1
Cylinder bore:78.0 mm (3.07 in)
Piston stroke:83.6 mm (3.291 in)
Number of piston rings (compression / oil):2 / 1
Number of main bearings:5
Cylinder inner diameter (standard):78.000-78.050 mm (3.0709-3.0720 in)
Piston skirt diameter (standard):77.925-77.935 mm (3.0679-3.0683 in)
Piston pin outer diameter:19.995-20.000 mm (0.7872-0.7874 in)
Piston ring side clearance:Top0.040-0.073 mm (0.0016-0.0029 in)
Second0.030-0.063 mm (0.0012-0.0025 in)
Oil0.025-0.085 mm (0.0010-0.0033 in)
Piston ring end gap:Top0.22-0.39 mm (0.0087-0.0154 in)
Second0.19-0.45 mm (0.0075-0.0177 in)
Oil0.20-0.76 mm (0.0079-0.0299 in)
Connecting rod center distance:132.95-133.05 mm (5.2342-5.2382 in)
Crankshaft journal diameter:52.951-52.964 mm (2.0847-2.0852 in)
Crankpin diameter:44.954-44.974 mm (1.7698-1.7706 in)
Crankshaft center distance:41.77-41.83 mm (1.6445-1.6468 in)

Cylinder head

Intake valves are 31.0 mm (1.22 in) in diameter, intake duration is 248°, valve lift is 8.5 mm (0.335 in), and the exhaust valves are 28.0 mm (1.10 in) in diameter, exhaust duration is 248°, valve lift is 8.5 mm (0.335 in).

Cylinder head
Valve Arrangement:DOHC
Valves:16 (4 valves per cylinder)
Intake/Exhaust duration:248°/248°
Valve head diameter:INTAKE31.0-31.2 mm (1.220-1.228 in)
EXHAUST28.0-28.2 mm (1.102-1.110 in)
Valve length:INTAKE89.0-89.2 mm (3.504-3.512 in)
EXHAUST89.2-89.4 mm (3.512-3.520 in)
Valve stem diameter:INTAKE5.965-5.980 mm (0.2348-0.2354 in)
EXHAUST5.945-5.960 mm (0.2341-0.2346 in)
Valve spring free length:INTAKE43.10 mm (1.697 in)
EXHAUST43.10 mm (1.697 in)
Cam height:INTAKE40.485-40.515 mm (1.5939-1.5951 in)
EXHAUST40.485-40.515 mm (1.5939-1.5951 in)

Maintenance data

Compression pressure
Standard14.0 kg/cm2 (199 psi) / 350 rpm
Minimun12.0 kg/cm2 (171 psi) / 350 rpm
Oil system
Oil consumption , L/1000 km (qt. per miles)up to 0.5 (1 qt. per 1200 miles)
Recommended engine oil 10W-30
Oil type APISE or SF
Engine oil capacity (Refill capacity) With oil filter: 3.8 l (3-3/8 qt)
Without oil filter: 3.4 l (3 qt)

Vehicle applications

ModelYears Produced
Nissan Pulsar NX SE (USA and Canada)
Nissan EXA (Australia and Japan)
Nissan Sunny B12
Nissan Sunny N13 (Europe)
Nissan Pulsar N13 X1 Twincam (Japan)
Nissan Pulsar N13 SR Twincam (New Zealand)
