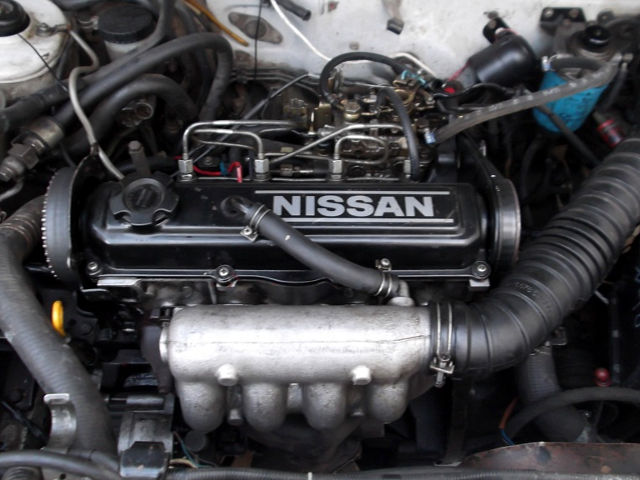

Nissan CD17 diesel engineThe Nissan CD17 is a 1.7 L (1,680 cc, 102.52 cu-in) straight four, water-cooled naturally aspirated diesel engine from Nissan CD family. The engine was used on Nissan mid-size models from 1982 to 1998.

The Nissan CD17 engine has a cast-iron cylinder block, an aluminum cylinder head with SOHC (Single over-head camshaft) with two valves per cylinder. The compression ratio rating is 21.8:1. Cylinder bore and the piston stroke is 80 mm (3.15 in) and 83.6 mm (3.29 in), respectively. The CD17 produced 61 PS (45 kW; 60 HP) at 5,000 rpm or 55 PS (40.5 kW; 54) at 5,000 rpm of horsepower and 104 Nm (10.6 kg·m; 76.7 ft·lb) at 2,800 rpm of torque.

The breakdown of the engine code is as follows:

  • CD – Engine Family
  • 17 – 1.7 Liter Displacement

General information

Engine Specifications
Engine codeCD17
LayoutStraight-4, vertical
Fuel typeDiesel
Production1982-1998
Displacement1.7 L, 1,680 cm3 (102.52 cu in)
Injection pumpFuel injection pump
Power addernone
Max. Horsepower 61 PS (45 KW; 60 HP) at 5,000 rpm
55 PS (40.5 KW; 54) at 5,000 rpm
Torque output104 Nm (10.6 kg·m; 76.7 ft·lb) at 2,800 rpm
Firing order1-3-4-2
Dimensions (L x H x W):
Weight180.0 kg (396.8 lbs)

Cylinder block

The Nissan CD17 motor has a cast-iron cylinder block with five-bearings supported system and an aluminum alloy piston for high strength, lightweight and good heat conductivity; three compression and two oil control rings. The cylinder bore is 80 mm (3.15 in), piston stroke is 83.6 mm (3.29 in) and compression ratio rating is 21.8:1.

Cylinder block
Cylinder block alloyCast iron
Compression ratio:21.8:1
Cylinder bore:80 mm (3.15 in)
Piston stroke:83.6 mm (3.29 in)
Number of piston rings (compression / oil):2 / 1
Number of main bearings:5
Cylinder inner diameter:80.000-80.010 mm (3.1496-3.1500 in)
Piston skirt diameter79.940-79.950 mm (3.1472-3.1476 in)
Piston ring side clearance:Top0.020-0.060 mm (0.0008-0.0024 in)
Second0.040-0.080 mm (0.0016-0.0031 in)
Oil0.030-0.070 mm (0.0012-0.0028 in)
Piston ring end gap:Top0.20-0.35 mm (0.0079-0.0138 in)
Second0.20-0.35 mm (0.0079-0.0138 in)
Oil0.30-0.45 mm (0.0118-0.0177 in)
Piston pin outer diameter23.994-24.000 mm (0.9446-0.9449 in)
Piston pin hole diameter23.991-23.999 mm (0.9445-0.9448 in)
Crankshaft main journal diameter:52.967-52.975 mm (2.0853-2.0856 in)
Crankpin diameter:44.961-44.974 mm (1.7701-1.7706 in)
Crankshaft center distance:41.800 mm (1.6457 in)

Main bearing cap bolts tightening procedure and torque specs:

  • 76-78 Nm; 7.8-8.0 kg·m; 56-58 ft·lb

After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.

Connecting rod bearing nut

  • Step 1: 14-16 Nm; 1.4-1.6 kg·m; 10-11 ft·lb
  • Step 2: Turn nuts 60-65° or 37-45 Nm; 3.8-4.6 kg·m; 27-33 ft·lb

Crankshaft pulley

  • 142-152 Nm; 14.5-15.5 kg·m; 105-112 ft·lb

Flywheel fixing bolts

  • 83-93 Nm; 8.5-9.5 kg·m; 61-69 ft·lb

Cylinder head

The engine has SOHV design with a single camshaft and two valves per cylinder. The camshaft is driven from the crankshaft by a timing belt, the injection pump is also driven by a belt. Intake valves are 36.0 mm (1.41 in) in diameter, and the exhaust valves are 31.0 mm (1.22 in). The CD17 engine uses two valve springs.

Cylinder head (Almera N15 specs)
Block head alloyAluminium
Valve Arrangement:SOHC, belt drive
Valves:8 (2 valves per cylinder)
Valve head diameter:INTAKE36.0 mm (1.4173 in)
EXHAUST31.0 mm (1.2250 in)
Valve length:INTAKE100.55-100.85 mm (3.9587-3.9705 in)
EXHAUST100.55-100.85 mm (3.9587-3.9705 in)
Valve stem diameter:INTAKE6.965-6.980 mm (0.2742-0.2748 in)
EXHAUST6.945-6.960 mm (0.2734-0.2740 in)
Valve spring free length:INTAKE Inner: 46.40 mm (1.8268 in)
Outer: 43.20 mm (1.7008 in)
EXHAUST Inner: 46.40 mm (1.8268 in)
Outer: 43.20 mm (1.7008 in)
Camshaft cam height:INTAKE44.45-44.50 mm (1.7500-1.7520 in)
EXHAUST45.45-45.50 mm (1.7890-1.7913 in)
Camshaft journal diameter:29.935-29.955 mm (1.1785 – 1.1793 in)

Head tightening procedure and torque specs:

  • Step 1: 39 Nm; 4.0 kg·m; 29 ft·lb
  • Step 2: 98-108 Nm; 9.8-10.8 kg·m; 72-80 ft·lb
  • Step 3: Turn all bolts 180-190°
  • Step 4: Loosen all bolts completely
  • Step 5: 39 Nm; 4.0 kg·m; 29 ft·lb
  • Step 6: Turn all bolts 75-80°

Camshaft-bracket nuts

  • 18-22 Nm; 1.8-2.2 kg·m; 13-16 ft·lb

Cramshaft sprocket

  • Front: 92-102 Nm; 9.4-10.4 kg·m; 68-75 ft·lb
  • Rear: 92-102 Nm; 9.4-10.4 kg·m; 68-75 ft·lb

Injection pump sprocket

  • 59-69 Nm; 6.0-7.0 kg·m; 43-51 ft·lb

Maintenance data

Valve clearance (HOT)
Intake valve0.25-0.35 mm (0.010-0.014 in)
Exhaust valve0.39-0.049 mm (0.015-0.019 in)
Compression pressure
Standard32 kg/m2 (31.4 bar, 455 psi) / 200 rpm
Minimun25 kg/m2 (24.5 bar, 356 psi) / 200 rpm
Compression differential limit between cylinders5 kg/m2 (4.9 bar, 71 psi) / 200 rpm
Oil system
Recommended engine oilAPI-CD
SAE Viscosity Number For cold and warm areas: 10W-30
For hot areas: 20W-40 and 20W-50
Engine oil capacity With oil filter: 4.9 l
Without oil filter: 4.4 l

Vehicle applications

ModelYears Produced
Nissan Sunny (B11)1982–1985
Nissan Pulsar / Cherry (N12)1983–1986
Nissan Langley (N12)1983–1986
Nissan Laurel Spirit (B11)1983–1986
Nissan AD (VB11)1982–1990
Nissan Sentra (B11)1982–1985
Nissan Sunny (B12-B13)1985–1995
Nissan Pulsar (N13-N14)1986–1995
Nissan Langley N131986–1990
Nissan Laurel Spirit B121986–1990
Nissan AD Y101990–1998
