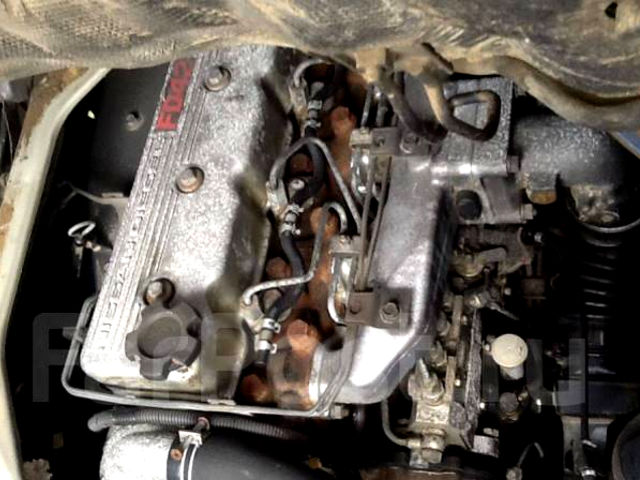

The Nissan FD42 is a 4.2 l (4,212 cc, 257.03 cu·in) straight-four, water-cooled naturally aspirated diesel engine from Nissan FD family. The engine was manufactured by UD Trucks (Nissan Diesel) from 1991 to 1995.
The Nissan FD42 has a cast-iron cylinder block, a cylinder head with OHV (overhead valves with single camshaft), two valves per cylinder (8 in total) and a direct fuel injection system.
The cylinder bore is 108.0 mm (4.25 in) and the piston stroke is 115.0 mm (4.53 in), and the compression ratio rating is 18.0:1. The Nissan FD42 engine produced 125 PS (92 kW; 123 HP) at 3,200 rpm of maximum output power and 299 N·m (30.5 kg·m, 220.4 ft·lb) at 2,000 rpm of peak torque.
The breakdown of the engine code is as follows:
- FD – Engine Family
- 42 – 4.2 Liter Displacement
General information
| Engine Specifications | |
| Engine code | FD42 |
| Layout | Straight-4, vertical |
| Fuel type | Diesel |
| Production | 1991-1995 |
| Displacement | 4.2 L, 4,212 cc (257.03 cu in) |
| Fuel system | Direct injection system |
| Power adder | none |
| Max. Horsepower | 125 PS (92 kW; 123 HP) at 3,200 rpm |
| Torque output | 299 N·m (30.5 kg·m, 220.4 ft·lb) at 2,000 rpm |
| Firing order | 1-3-4-2 |
| Dimensions (L x H x W): | – |
| Weight | – |
Cylinder block
The Nissan FD42 motor has a cast-iron cylinder block with a five-bearings supported system and an aluminum alloy piston for high strength, lightweight and good heat conductivity; two compression and one oil control rings. The cylinder bore is 108.0 mm (4.25 in), piston stroke is 115.0 mm (4.53 in). The compression ratio rating is 18.0:1.
| Cylinder block | ||
| Cylinder block alloy | Cast-iron | |
| Compression ratio: | 18.0:1 | |
| Cylinder bore: | 108.0 mm (4.25 in) | |
| Piston stroke: | 115.0 mm (4.53 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 5 | |
| Cylinder inner diameter: | 108.020-108.050 mm (4.2527-4.2539 in) | |
| Piston skirt diameter | 107.920-107.930 mm (4.2488-4.2492 in) | |
| Piston ring side clearance: | Top | 0.070-0.110 mm (0.0028-0.0043 in) |
| Second | 0.040-0.080 mm (0.0016-0.0031 in) | |
| Oil | 0.020-0.060 mm (0.0008-0.0024 in) | |
| Piston ring end gap: | Top | 0.300-0.450 mm (0.0118-0.0177 in) |
| Second | 0.300-0.450 mm (0.0118-0.0177 in) | |
| Oil | 0.250-0.450 mm (0.0098-0.0177 in) | |
| Piston pin outer diameter | 35.993-36.000 mm (1.417-1.4173 in) | |
| Connecting rod center distance | 178.775-178.825 mm (7.0384-7.0403 in) | |
| Crankshaft main journal diameter: | 77.920-77.940 mm (3.0677-3.0685 in) | |
| Crankpin diameter: | 64.925-64.945 mm (2.5561-2.5569 in) | |
| Crankshaft center distance: | 57.5 mm (2.265 in) | |
Connecting rod bearing nut
- 113-118 Nm; 11.5-12.0 kg·m; 83-87 ft·lb
Crankshaft pulley
- 490-539 Nm; 50-55 kg·m; 362-389 ft·lb
Flywheel fixing bolts
- 265-284 Nm; 27-29 kg·m; 195-210 ft·lb
Cylinder head
The engine has OHV design with a single camshaft and two valves per cylinder (8 valves in total). Intake valves are 48.5 mm (1.91 in) in diameter, and the exhaust valves are 39.5 mm (1.55 in).
| Cylinder head | ||
| Valve Arrangement: | OHV | |
| Valves: | 8 (2 valves per cylinder) | |
| Valve head diameter: | INTAKE | 48.4-48.6 mm (1.9055-1.9134 in) |
| EXHAUST | 39.4-39.6 mm (1.5512-1.5591 in) | |
| Valve length: | INTAKE | 128.65-129.25 mm (5.065-5.0886 in) |
| EXHAUST | 129.70-130.30 mm (5.1063-5.1299 in) | |
| Valve stem diameter: | INTAKE | 8.970-8.985 mm (0.3531-0.3537 in) |
| EXHAUST | 8.935-8.950 mm (0.3518-0.3524 in) | |
| Valve spring free length: | INTAKE | Inner: 58.9 mm (2.3189 in) Outer: 59.5 mm (2.3425 in) |
| EXHAUST | Inner: 58.9 mm (2.3189 in) Outer: 59.5 mm (2.3425 in) | |
| Camshaft cam height: | INTAKE | 47.005-47.025 mm (1.8506-1.8514 in) |
| EXHAUST | 47.005-47.025 mm (1.8506-1.8514 in) | |
Maintenance data
| Valve clearance (HOT) | |
| Intake valve | 0.40 mm (0.0157 in) |
| Exhaust valve | 0.40 mm (0.0157 in) |
| Compression pressure | |
| Standard | 30 kg/cm2 (29.4 bar, 426 psi) / 200 rpm |
| Minimun | 25 kg/cm2 (24.5 bar, 356 psi) / 200 rpm |
| Compression differential limit between cylinders | 3 kg/cm2 (2.9 bar, 42 psi) / 200 rpm |
| Oil system | |
| Recommended engine oil | API CC or CD |
| SAE Viscosity Number | For cold and warm areas: 10W-30 For hot areas: 20W-40 and 20W-50 |
| Engine oil capacity | With oil filter: 9.6 l Without oil filter: 8.3 l |
Vehicle applications
| Model | Years Produced |
| Nissan Atlas (H41) | 1991-1995 |
| Nissan Condor (S41) | 1991-1995 |
