Nissan VQ37VHR

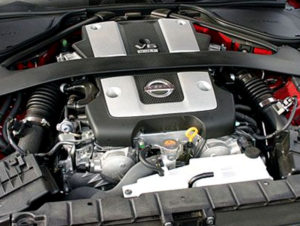

Nissan VQ37VHR engineThe Nissan VQ37VHR is a 3.7 l (3,696 cc, 225.53 cu.in.) V6 4-stroke natural aspirated gasoline engine from Nissan VQ-family. The engine is producted on Nissan’s Iwaki factory since 2007. The VQ37VHR engine was honored by Ward’s 10 Best Engines list in 2008.

The VQ37VHR features a lightweight aluminum block with a fully balanced four-bearings crankshaft and two aluminum heads with two camshafts (DOHC) and four valves per cylinder. The Nissan VQ37VHR engine is equipped with CVTC (eVTC), VVEL system and NDIS (Nissan Direct Ignition System) with individual coils on each spark plug.

Compression ratio rating is 11:1. Cylinder bore and piston stroke are 95.5 mm (3.76 in) and 86.0 mm (3.38 in), respectively. It produces from 330 PS (242 kW, 325 HP) at 7000 rpm on the European version of Infiniti FX37 and EX37 up to 355 PS (261 kW, 350 HP) at 7600 rpm on Nissan Fairlady Z (Nismo version). The maximum torque is 374 Nm (38.13 kg·m, 275.8 lb·ft) at 5200 rpm.

The breakdown of the engine code is as follows:

  • VQ – Engine Family
  • 37 – 3.7 Liter Displacement
  • V – VVL (Variable Valve Lift)
  • HR – High Response and High Revolution

General information

Engine Specifications
Engine codeVQ37VHR
LayoutFour stroke, V6
Fuel typeGasoline (petrol)
Production2007-present
Displacement3.7 L, 3,696 cc (225.53 cu in)
Fuel systemDirect Injection
Power adderNone
Power output 330 PS (243 kW, 325 HP) at 7,000 rpm
333 PS (245 kW, 328 HP) at 7,000 rpm
336 PS (247 kW, 331 HP) at 7,000 rpm
355 PS (261 kW, 350 HP) at 7,400 rpm
Torque output 361 Nm (36.8 kg·m, 266.3 lb·ft) at 5,200 rpm
363 Nm (37.0 kg·m, 267.7 lb·ft) at 5,200 rpm
365 Nm (37.2 kg·m, 269.2 lb·ft) at 5,200 rpm
374 Nm (38.1 kg·m, 275.3 lb·ft) at 5,200 rpm
Firing order1-2-3-4-5-6
Dimensions (L x W x H):
Weight

Cylinder block

The VQ37VHR has an aluminum block with a four-bearings crankshaft supported system. The crankshaft journals are finished with a polishing tape to produce a mirror-like finish. The result is a thorough reduction in friction on these bearing surfaces of key engine components. Pistons have asymmetrical skirts with molybdenum coating.

The cylinder bore is 95.5 mm (3.760 in), piston stroke is 86.0 (3.386 in) mm and compression ratio rating is 11:1. The Nissan VQ37VHR motor has two compression and one oil control rings. The connecting rod’s length is 149.5 mm (5.88 in)

Cylinder block
Cylinder block alloyAluminium
Compression ratio:11:1
Cylinder bore:95.5 mm (3.760 in)
Piston stroke:86.0 mm (3.386 in)
Number of piston rings (compression / oil):2 / 1
Number of main bearings:4
Cylinder inner diameter (standard):95.500-95.510 mm (3.7598-3.7602 in)
Piston skirt diameter (standard):95.480-95.490 mm (3.7590-3.7594 in)
Piston pin outer diameter:21.989-21.995 mm (0.8657-0.8659 in)
Piston ring side clearance:Top0.040-0.080 mm (0.0016-0.0031 in)
Second0.030-0.070 mm (0.0012-0.0028 in)
Oil0.055-0.155 mm (0.0022-0.0061 in)
Piston ring end gap:Top0.23-0.33 mm (0.0091-0.0130 in)
Second0.23-0.33 mm (0.0091-0.0130 in)
Oil0.17-0.47 mm (0.0067-0.0185 in)
Connecting rod bushing inner diameter:22.000-22.006 mm (0.8661-0.8664 in)
Connecting rod big end diameter:57.000 mm (2.2441 in)
Connecting rod center distance:149.45-149.55 mm (5.88 – 5.89 in)
Crankshaft main journal diameter:64.975 mm (2.5581 in)
Crankpin diameter:53.974 mm (2.1250 in)
Crankshaft center distance:42.96-43.04 mm (1.6913-1.6945 in)

Cylinder head

The cylinder head is made of strong, light aluminum alloy which gives it good cooling efficiency. The engine is equipped with CVTC (Continuous Variable Valve Timing Control) and VVEL (Variable Valve Event and Lift) systems.

VVEL operation principle: A rocker arms and two types of links open the intake valves by transferring the rotational movement of a drive shaft with an eccentric cam to the output cam. The movement of the output cam is varied by rotating the control shaft with a stepper motor and changing the fulcrums of the links. This makes the continuous adjustment of the amount of the valve’s lift, during the intake valve event in the four-stroke cycle, possible. CVTC and VVEL systems together control the valve phases and its valve events, allowing free-control of the valve timing and lift.

The camshafts are driven by single primary and two secondary chains. The primary timing chain transmits the rotational movement from the crankshaft to the intake camshafts, the secondary chains connects intake and exhaust sprocket on each head respectively.

The intake valves are 36.6 mm in diameter and the exhaust valves are 30.2 mm. The VQ37VHR motor does not have hydraulic lifters, so special valve lifters are used to adjust the valve clearance.

Cylinder head
Block head alloyAluminium
Valve Arrangement:DOHC, chain drive
Cylinder head height:126.4 mm (4.98 in)
Valves:24 (4 valves per cylinder)
Valve head diameter:INTAKE36.6-36.9 mm (1.441-1.453 in)
EXHAUST30.2-30.5 mm (1.189-1.201 in)
Valve length:INTAKE100.11 mm (3.94 in)
EXHAUST94.67 mm (3.7272 in)
Valve stem diameter:INTAKE5.965-5.980 mm (0.2348-0.2354 in)
EXHAUST5.962-5.970 mm (0.2347-0.2350 in)
Valve spring free length:INTAKE45.66 mm (1.7976 in)
EXHAUST43.85 mm (1.7264 in)
Exhaust camshaft cam height:Bank 145.015-45.205 mm (1.7722-1.7797 in)
Bank 246.735-46.925 mm (1.8400-1.8474 in)
Exhaust camshaft journal diameter:№125.935-25.955 mm (1.0211-1.0218 in)
№2, 3, 4, 523.445-23.465 mm (0.9230-0.9238 in)

Head tightening procedure and torque specs:

  • Step 1: 105 Nm; 11.0 kg·m; 77 ft·lb
  • Step 2: Loosen all bolts completely
  • Step 3: 40 kg·m; 4.1 kg·m; 30 ft·lb
  • Step 4: Turn all bolts 95°
  • Step 5: Turn all bolts another 95°

Camshaft sprocket bolts

  • Intake: 103 Nm; 11 kg·m; 76 ft·lb
  • Exhaust: 123 Nm; 13 kg·m; 91 ft·lb

Problems and malfunctions

The Nissan VQ37VHR is reliable and durable, but sometimes the following problems can happen:

  • High oil consumption. The VQ37VHR has a catalytic converter and it is very sensitive to the fuel quality. They produce ceramic dust, which damaging the cylinders sleeve and piston rings. As a result, the engine has low compression, high fuel, and oil consumption. Such an engine requires repair or replacement.
    To prevent this problem, you need to change the upper catalytic converters for high flow catalytic converter. It will decrease the ecological standard, but this problem will not happen.

  • Engine overheating. This is not a common problem, but it happens from time to time. Check the radiator condition and expansion tanks of the cooling system for any leaks.

The engine has three timing chains, their service life is about 150,000 miles of mileage (200,000-250,000 km). The valve clearance needs to be adjusted every 60,000 miles of mileage (90,000 km). The Nissan VQ37VHR motor life expectancy is 200,000 miles of mileage (300,000 km) or more.

Maintenance data

Valve clearance (HOT)
Intake valve0.304-0.416 mm (0.012-0.016 in)
Exhaust valve0.308-0.432 mm (0.012-0.017 in)
Compression pressure
Standard17-24 kg/cm2 (242-341 psi) / 200 rpm
Minimun12.5 kg/cm2 (178 psi) / 200 rpm
Compression differential limit between cylinders1.0 kg/cm2 (15 psi) / 200 rpm
Oil system
Oil consumption , L/1000 km (qt. per miles)up to 0.5 (1 qt. per 1200 miles)
Recommended engine oil 5W-30
Oil type API
Engine oil capacity (Refill capacity) With filter change 4.9 l (5-1/8 US. qt., 4-3/8 Imp. qt.)
Without filter change 4.6 l (4-7/8 Us. qt., 4 Imp. qt.)
Oil change interval, km (miles)5,000-10,000 (3,000-6,000)
Oil Pressure, kPa (kg/cm 2, psi) Idle speed: More than 98 (1.0, 14)
2,000 rpm: More than 294 (3.0, 43)
Ignition system
Spark plugDENSO: FXE24HR11
Spark plug gap1.1 mm (0.043 in)

Valve clearance adjustment data

Calculate the thickness of new adjusting valve lifter so valve clearance comes within specified values.

R = Thickness of removed valve lifter
N = Thickness of new valve lifter
M = Measured valve clearance

Intake:
N = R + [M – 0.30 mm (0.012 in)]
Exhaust:
N = R + [M – 0.34 mm (0.013 in)]

Valve lifters are available in 27 sizes to range from 7.88 mm (0.3102 in) to 8.40 mm (0.3307 in), in steps of 0.02 mm (0.0008 in).

Example (exhaust valve):
R = 7.90 mm
M = 0.52 mm
N = 7.90 + (0.52 – 0.34) = 8.08 mm, so we need a valve lifter with identification mark 808.

ColdHot
Intake0.26-0.34 mm (0.010-0.013 in)0.304-0.416 mm (0.012-0.016 in)
Exhaust0.29-0.37 mm (0.011-0.015 in)0.308-0.432 mm (0.012-0.017 in)

Vehicle applications

ModelYears Produced
Infiniti G37 Coupe2008–2013
Nissan Skyline V36 370 GT Coupe2008–
Infiniti G37 Sedan2009–
Nissan Skyline V36 370 GT Sedan2009–
Infiniti G37 Convertible2009–2013
Nissan Fuga 370GT2009–
Infiniti FX372009–2013
Infiniti EX372009–2013
Nissan 370Z/Fairlady Z 2009–
Nissan 370Z Nismo2009
Infiniti M372011–2013
Infiniti IPL G37 Coupe2011–
Mitsubishi Proudia 370GT2012–
Infiniti IPL G37 Convertible2013
Infiniti Q50 Sedan2014–2015
Infiniti Q60 Coupe2014–
Infiniti Q60 Convertible2014–
Infiniti Q702014–
Infiniti QX502014–
Infiniti QX702014–
