Rato C110 (RW150FMH)

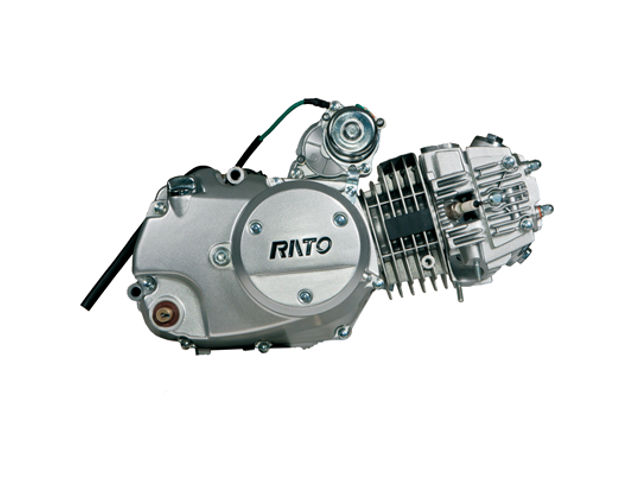

Rato C110 (RW150FMH)The Rato C110 (RW150FMH) is a 109 cc (6.6 cu-in) single-cylinder air-cooled 4-stroke internal combustion horizontal motorcycle engine manufactured by Chongqing RATO Holding (Group) CO., LTD.

The Rato C110 engine uses CDI (capacitance discharge ignition system), electric or kick starter, dual clutches and 4-speed gearbox(with sophisticated protection).

The engine cylinder bore is 50.0 mm (1.97 in) and piston stroke is 55.5 mm (2.18 in). The C110 (RW150FMH) produced 7.2 PS (5.3 kW; 7.1 HP) at 7,500 rpm of maximum horsepower and 7.5 N·m (0.76 kg·m, 5.53 ft·lb) at 5,500 rpm of torque.

General information

Engine Specifications
Model C110 (RW150FMH)
Type Vertical, four-stroke, single cylinder
Displacement 109 cc (6.6 cu-in)
Max. horsepower 7.2 PS (5.3 kW; 7.1 HP) at 7,500 rpm
Max. torque (crank PTO) 7.5 N·m (0.76 kg·m, 5.53 ft·lb) at 5,500 rpm
Clutch method Double clutches
Gearshift method 4-speed gearshift(with sophisticated protection
Cooling system Forced-air
Ignition system Capacitance discharge ignition (CDI)
Lubricating system Splash
Starting system Electric / kick
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel consumption 367 g/kw·h

Dimensions and Weight

Rato C110 (RW150FMH)
Length, mm (in) 450 (17.7)
Width, mm (in) 310 (12.2)
Height, mm (in) 260 (10.2)
Dry weight, kg (lb) 23 (50.7)

Service Information

Oil system
Oil capacity 1.0 L
Ignition system
Spark plug A7RTC
