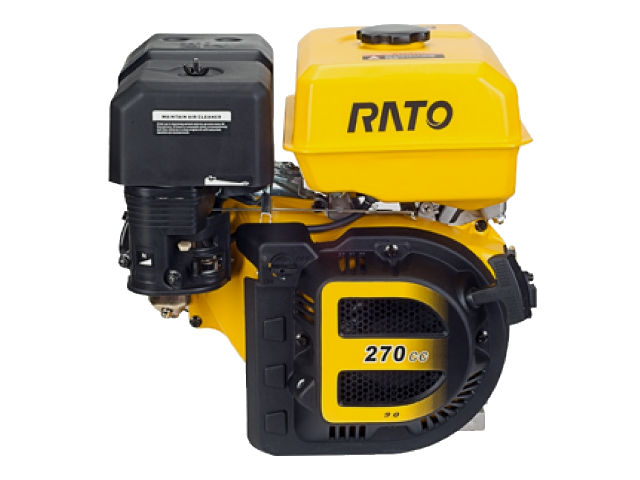

Rato R270The Rato R270 is a 270 cc (16.47 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with horizontal shaft manufactured by Chongqing RATO Holding (Group) CO., LTD.

The Rato R270 engine has an OHV design; flat suction valve carburetor; recoil starter or electric starter, transistorized magneto ignition (TCI) system and centrifugal mechanical governor system.

A 77.0 mm (3.03 in) cylinder bore and 58.0 mm (2.28 in) piston stroke give the Rato R270 motor a total of 270 cc (16.47) of displacement. Compression ratio rating is 8.5:1. It produced 9.0 HP of horsepower at 3,600 rpm and 16.8 N·m (1.71 kg·m, 12.39 ft·lb) of torque at 2,500 rpm.

General information

Engine Specifications
ModelR270
Type4-stroke, OHV, single cylinder
Displacement270 cm 3 (16.47 cu-in)
Max. horsepower9.0 HP at 3,600 rpm
Max. torque (crank PTO)16.8 N·m (1.71 kg·m, 12.39 ft·lb) at 2,500 rpm
CarburetorFlat suction valve carburetor
Cooling systemForced-air
Ignition systemTransistorized magneto ignition (TCI)
Lubricating systemSplash
Starting systemRecoil / electric starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Cylinder Block and Head

The Rato R270 engine has cast-iron cylinder liner, dual ball bearings and steel forged and hardened crankshaft.

Cylinder block
Compression ratio:8.5:1
Bore x Stroke77 X 58 mm (3.03 x 2.28 in)
Sleeve internal diameter77.000-77.017 mm (3.0315-3.0321 in)
Piston skirt outer diameter76.965-76.985 mm (3.0301-3.0309 in)
Number of piston rings (compression / oil):2 / 1
Ring side clearanceTop/Second0.015-0.045 mm (0.0006-0.0018 in)
Ring end gapTop/Second0.20-0.40 mm (0.008-0.016 in)
Oil0.20-0.70 mm (0.008-0.027 in)
Ring widthTop/Second1.5 mm (0.060 in)
Oil2.0 mm (0.079 in)
Connecting rod small end ID18.005 mm (0.7087 in)
Connecting rod big end ID33.025-33.039 mm (1.3001-1.3007 in)
Crankshaft crank pin outer diameter32.975-32.985 mm (1.2982-1.2986 in)
Cylinder Head
Warpage (limit)0.10 mm (0.004 in)
Valve Arrangement:OHV
Valves:2
Stem outer diameter (standard):INTAKE6.575-6.590 mm (0.2589-0.2594 in)
EXHAUST6.535-6.550 mm (0.2573-0.2579 in)
Cam height:INTAKE32.9-33.1 mm (1.2952-1.3031 in)
EXHAUST32.5-32.7 mm (1.2795-1.2874 in)
Valve spring free length:39.0 mm (1.5354 in)
Camshaft journal diameter:15.966-15.984 mm (0.6286-0.6293 in)

Tightening torque specs

Tightening torque specs
Connecting rod bolt15 Nm; 1.5 kg·m; 11 ft·lb
Oil dran plug22 Nm; 2.2 kg·m; 16 ft·lb
Crankcase cover28 Nm; 2.8 kg·m; 21 ft·lb
Flywheel subassembly75 Nm; 7.5 kg·m; 55 ft·lb
Cylinder head subassembly42 Nm; 4.2 kg·m; 31 ft·lb
Rocker shaft bolt24 Nm; 2.4 kg·m; 18 ft·lb
Cylinder head cover10 Nm; 1.0 kg·m; 7 ft·lb
Spark plug28 Nm; 2.8 kg·m; 21 ft·lb
Ignition coil10 Nm; 1.0 kg·m; 7 ft·lb

Service Information

Engine
Maximum speed3150-3180 rpm
Cylinder compression14.0 kg/cm2 at 1400 rpm
Valve clearance
Intake valve clearance0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance0.20±0.02 mm (0.008±0.001 in)
Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30, 15W-40
Oil capacity1.1 L
Carburetor
Main jet0.88
Float height13.2 mm (0.52 in)
Pilot screw opening2-7/8 turns out
Ignition system
Spark plugNGK: BPR6ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Primary ignition coil resistance0.6-0.9 Ω
Secondary ignition coil resistance5.6-6.9 kΩ
Ignition coil air gap0.4 ± 0.2 (0.016 ± 0.008)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
