Honda GD1100

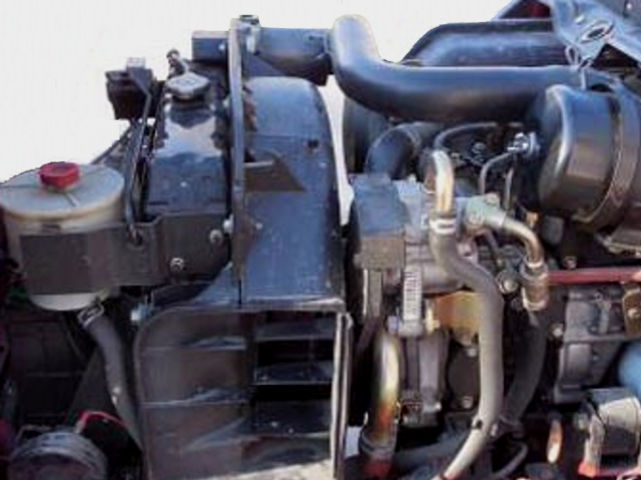

Honda GD1100 diesel engineThe Honda GD1100 is a 1.1 l (1,061 cc, 65.0 cu-in) three-cylinder water-cooled 4-stroke diesel engine, manufactured by Honda Motor Company for general-purpose applications.

A 76 mm (2.99 in) cylinder bore and 78 mm (3.07 in) piston stroke give the GD1100 engine a total of 1,061 cc (65.0 cu-in) of displacement. Compression ratio rating is 18:1.

It produced 22 HP (16.4 kW) of maximum output (modification SH3). The maximum torque is 52 N·m (5.3 kg·m, 38.33 ft·lb) at 2,000 rpm.

General information

Engine Specifications
ModelGD1100
Type4-stroke, OHV, three cylinder
Displacement1,061 cm 3 (65.0 cu-in)
Max. horsepower SH1: 18 HP (13.4 kW) at 2,600 rpm
SH2: 20 HP (14.9 kW) at 3,000 rpm
SH3: 22 HP (16.4 kW) at 3,600 rpm
Max. torque (crank PTO) SH1: 58.8 N·m (6.0 kg·m, 43.39 ft·lb) at 2,600 rpm
SH2: 55.9 N·m (5.7 kg·m, 41.22 ft·lb) at 2,000 rpm
SH3: 52 N·m (5.3 kg·m, 38.33 ft·lb) at 2,200 rpm
Firing order1-3-2 (1-2-3 from timing belt side)
Injection timing SH1, SH2: B.T.D.C 15°
SH3: B.T.D.C 18°
Cooling systemLiquid-cooling
Lubricating systemForced oil by trochoid pump
Starting systemStarter motor
Fuel usedDiesel fuel
Fuel tank capacity20.0 l (5.28 US. Gal, 4.40 Imp. Gal.)
Fuel consumption SH1: 178 g/psh
SH2: 194 g/psh
SH3: 214 g/psh
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

SH1SH2SH3
Length, mm (in)520 (20.5)
Width, mm (in)415 (16.3)
Height, mm (in)540 (21.3)555 (21.9)
Dry weight, kg (lb)100.0 (220.5)

Cylinder Block and Head

Cylinder block
Compression ratio:18:1
Bore x Stroke76 mm X 78 mm (2.99 x 3.07 in)
Sleeve internal diameter76.000-76.017 mm (2.9921-2.9928 in)
Piston skirt outer diameter75.930-75.950 mm (2.9893-2.9901 in)
Number of piston rings (compression / oil):2 / 1
Ring side clearanceTop0.065-0.095 mm (0.0026-0.0037 in)
Second0.055-0.085 mm (0.0022-0.0022 in)
Oil0.020-0.055 mm (0.0008-0.0022 in)
Ring end gapTop0.20-0.35 mm (0.008-0.014 in)
Second0.20-0.35 mm (0.008-0.014 in)
Oil0.20-0.40 mm (0.008-0.016 in)
Piston pin outer diameter22.994-23.000 mm (0.9053-0.9055 in)
Connecting rod small end ID23.010-23.028 mm (0.9060-0.9066 in)
Cylinder Head
Distortion of cylinder head0.05 mm (0.002 in)
Valve Arrangement:OHV
Valves:2
Stem outer diameter (standard):INTAKE6.575-6.590 mm (0.2589-0.2594 in)
EXHAUST6.545-6.560 mm (0.2577-0.2583 in)
Guide internal diameterINTAKE / EXHAUST6.600-6.615 mm (0.2598-0.2604 in)
Spring free length38.1 mm (1.33 in)
Cam lobe heightINTAKE / EXHAUST39.538-39.938 mm (1.5566-1.5724 in)
Valve rocker arm internal diameter16.012-16.030 mm (0.6304-0.6311 in)
Rocker arm shaft outer diameter15.976-16.994 mm (0.6290-0.6691 in)

Tightening torque specs

Tightening torque specs
Camshaft holder bolts22 Nm; 2.2 kg·m; 16 ft·lb
Head cover nuts10 Nm; 1.0 kg·m; 7 ft·lb
Cylinder head bolts (M12) Step 1: 45 Nm; 4.5 kg·m; 32 ft·lb
Step 2: Turn all bolts 90°
Step 3: Turn all bolts 90° once more
Cylinder head bolts (M8)30 Nm; 3.0 kg·m; 22 ft·lb
Timing belt driven pulley bolt38 Nm; 3.8 kg·m; 27 ft·lb
Timing belt adjuster bolt43 Nm; 4.3 kg·m; 31 ft·lb
Crankshaft bearing cap bolts68 Nm; 6.8 kg·m; 49 ft·lb
Connecting rod cap nuts32 Nm; 3.2 kg·m; 23 ft·lb
Rear end plate bolts55 Nm; 5.5 kg·m; 40 ft·lb
Flywheel bolts115 Nm; 11.5 kg·m; 83 ft·lb
Flywheel housing55 Nm; 5.5 kg·m; 40 ft·lb
Oil filter holder55 Nm; 5.5 kg·m; 40 ft·lb
Oil filter cartridge22 Nm; 2.2 kg·m; 16 ft·lb
Fuel pipe nuts22.5 Nm; 2.25 kg·m; 16.3 ft·lb
Fuel joint bolts22.5 Nm; 2.25 kg·m; 16.3 ft·lb
Injection nozzle nuts Step 1: 5 Nm; 0.5 kg·m; 3.6 ft·lb
Step 2:10 Nm; 1.0 kg·m; 7 ft·lb
Governor shaft43 Nm; 4.3 kg·m; 31 ft·lb
Glow plugs17.5 Nm; 1.75 kg·m; 12.7 ft·lb
Glow plug nuts1.25 Nm; 0.125 kg·m; 0.9 ft·lb
Injection pump nut and bolts22 Nm; 2.2 kg·m; 16 ft·lb
Oil pressure switch20 Nm; 2.0 kg·m; 14 ft·lb
Drain plug bolt45 Nm; 4.5 kg·m; 32 ft·lb
Thermostat switch22.5 Nm; 2.25 kg·m; 16.3 ft·lb
Crankshaft pulley115 Nm; 11.5 kg·m; 83 ft·lb

Service Information

Engine
Maximum speed SH1: 2,750 rpm
SH2: 3,120 rpm
SH3: 3,740 rpm
Idle speed800 rpm
Cylinder compression27.0 kg/cm2 (384 psi) at 200 rpm
Valve clearance
Intake valve0.20 ± 0.02 (0.006 ± 0.00078)
Exhaust valve0.20 ± 0.02 (0.006 ± 0.00078)
Oil system
Oil typeDiesel oil (API Service Classification CC or CD)
Recommended oilSAE 10W-30
Oil capacity SH1: 2.9 l (3.07 US. qt, 2.55 Imp. qt.)
SH2, SH3: 4.8 l (5.07 US. qt, 4.22 Imp. qt.)
Oil pressure4.0 kg/cm2 (57 psi) at 800 rpm
