Honda GXV270

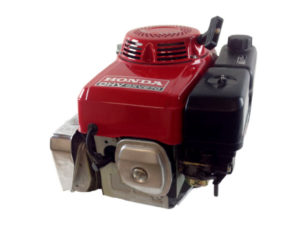

Honda GXV270 vertical shaft engineThe Honda GXV270 is a 0.27 l (270 cc, 16.5 cu-in) air-coolled single-cylinder four-stroke internal combustion small gasoline (petrol) engine with vertical shaft manufactured by Honda Motor Company for general-purpose applications, such as commercial lawn and garden equipment, construction and industrial equipment, agricultural equipment.

The GXV270 engine has an OHV design with two valves; sophisticated air intake system; large capacity, multi-chamber exhaust system. The engine is equipped with a centrifugal mechanical governor, horizontal type carburetor with butterfly valve, transistorized magneto ignition system and recoil or electric starter.

The cylinder bore is 77.0 mm (3.0 in) and the piston stroke is 58.0 mm (2.3 in), compression ratio rating is 7.8:1. The Honda GXV270 motor produces 8.6 PS (8.5 HP, 6.35 kW) at 3600 rpm and 18.0 Nm (1.8 kg·m, 13 ft·lb) of torque at 2500 rpm.

General information

Engine Specifications
ModelGXV270
Type4-stroke, OHV, single cylinder
Displacement270 cm 3 (16.5 cu-in)
Max. horsepower8.5 HP (8.6 PS, 6.35 kW) at 3600 rpm
Max. torque (crank PTO)18.0 Nm (1.8 kg·m, 13 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemTransistorized magneto ignition
Lubricating systemPressure and splash
Starting systemRecoil or electric starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity2.0 L (0.53 US gal, 0.44 lmp gal)
Fuel consumption321 g/kWh (240 g/HPh, 0.53 lb/HPh)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

GXV270
Length, mm (in)410 (16.1)
Width, mm (in)385 (15.2)
Height, mm (in)405 (15.9)
Dry weight, kg (lb)28 (62)
Operating
weight, kg (lb)
30.5 (67.2)

Cylinder Block and Head

The Honda GXV270 has cast iron cylinder sleeve, ball bearing supported crankshaft, improved piston design, heavy duty balancer shaft. The piston has two compression rings and one oil ring. Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

Cylinder block
Compression ratio:7.8
Bore x Stroke77 X 58 mm (3.0 x 2.3 in)
Sleeve internal diameter77.000 mm (3.031 in)
Piston skirt outer diameter76.985 mm (3.0309 in)
Number of piston rings (compression / oil):2 / 1
Ring side clearanceTop/second/oil0.015-0.045 mm (0.0006-0.0018 in)
Ring end gapTop/second0.2-0.4 mm (0.01-0.02 in)
Oil0.2-0.7 m (0.01-0.03 in)
Ring widthTop/second2.0 mm (0.08 in)
Crankshaft outer diameter32.985 mm (1.2986 in)
Cylinder Head
Warpage (limit)0.10 mm (0.004 in)
Valve Arrangement:Overhead valve
Valves:2
Stem outer diameter (standard):INTAKE6.590 mm (0.259 in)
EXHAUST6.550 mm (0.258 in)
Cam height:INTAKE33.00 mm (1.299 in)
EXHAUST32.60 mm (1.283 in)
Camshaft outer diameter:16.000 mm (0.6299 in)

Maintenance data

Engine
Maximum speed3400 ± 150 rpm
Idle speed1400 ± 150 rpm
Cylinder compression6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Valve clearance
Intake valve0.15 ± 0.02 (0.006 ± 0.001)
Exhaust valve0.20 ± 0.02 (0.008 ± 0.001)
Carburetor
Main jet#85
Float height11.9-14.5 mm (0.47-0.57 in)
Pilot screw opening2-1/4 turns out
Oil system
Oil typeHonda 4-stroke or an equivalent (SE or SF)
Recommended oilSAE 10W-40
Oil capacity1.1 L (1.2 US gal, 1.0 lmp qt)
Ignition system
Ignition timing20 ° B.T.D.C (Fixed)
Spark plugNGK: BPR5ES
NIPPONDENSO: W16EPR-U
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Primary ignition coil resistance0.7-0.9 Ω
Secondary ignition coil resistance6.3-7.7 kΩ
Ignition coil air gap0.4 ± 0.2 (0.016 ± 0.008)
Starter motor
Brush length7.2 mm (0.28 in) limit: 3.5 mm (0.14 in)
Mica depth1.0 mm (0.04 in) limit: 0.2 mm (0.01 in)

Tightening torque specs

Tightening torque specs
Connecting rod bolt14 Nm; 1.4 kg·m; 10 ft·lb
Cylinder head bolt35 Nm; 3.5 kg·m; 25 ft·lb
Flywheel nut115 Nm; 11.5 kg·m; 83 ft·lb
Pivot adjusting nut10 Nm; 1.0 kg·m; 7 ft·lb
Push rod guide pivot bolt24 Nm; 2.4 kg·m; 17 ft·lb
Oil pan bolt24 Nm; 2.4 kg·m; 17 ft·lb
Air cleaner body cap nut9 Nm; 0.9 kg·m; 6.5 ft·lb
Muffler mounting nut24 Nm; 2.4 kg·m; 17 ft·lb
Exhaust pipe mounting nut24 Nm; 2.4 kg·m; 17 ft·lb
Oil drain plug45 Nm; 4.5 kg·m; 34 ft·lb
Cylinder head cover bolt9 Nm; 0.9 kg·m; 6.5 ft·lb
Fuel tank bolt24 Nm; 2.4 kg·m; 17 ft·lb
Standard torque values
Bolt, nut (5 mm)5.5 Nm; 0.55 kg·m; 4.0 ft·lb
Bolt, nut (6 mm)10 Nm; 1.0 kg·m; 7 ft·lb
Bolt, nut (8 mm)24 Nm; 2.4 kg·m; 17 ft·lb
Bolt, nut (10 mm)37.5 Nm; 3.75 kg·m; 27 ft·lb
Bolt, nut (12 mm)55 Nm; 5.5 kg·m; 40 ft·lb
