Kama KM170FAXL

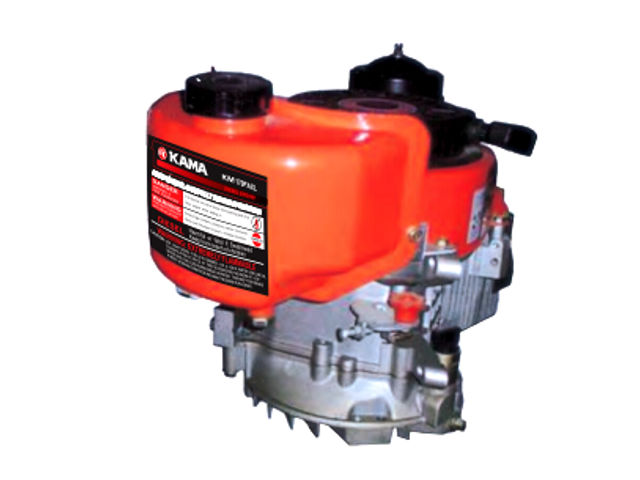

Kama KM170FAXL diesel engineThe Kama KM170FAXL is a 208 cc (12.7 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine with vertical shaft manufactured by WUXI WORLDBEST KAMA POWER CO., LTD (China).

The KM170FAXL has OHV design, single-cylinder, direct injection system, and recoil starter.

The KM170FAXL engine cylinder bore is 70.0 mm (2.79 in) and piston stroke is 54.0 mm (2.13 in). The engine produced 3.8 HP (2.8 kW) at 3,000 rpm of maximum horsepower. The continuous rated output power is 3.4 HP (2.5 kW) at 3,000 rpm.

General information

Engine Specifications
Model KM170FAXL
Type 4-stroke, single cylinder, diesel engine
Displacement 208 cm 3 (12.7 cu-in)
Max. horsepower 3.8 HP (2.8 kW) at 3,000 rpm
Max. torque
Cooling system Forced-air
Lubricating system Pressure spray compound
Starting system Recoil starter
Fuel used Light diesel oil
Fuel tank capacity 2.5 L (0.55 gal.)

Dimensions and Weight

Length, mm (in) 313 (13.32)
Width, mm (in) 396 (135.59)
Height, mm (in) 335 (13.19)
Weight, kg (lb) 16.0 (35.3)

Maintenance data

Engine speed 3,000 rpm
Valve clearance (cold state) 0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil type Oil for 4-stroke engines (above CC grade)
Recommended oil SAE 10W-30
Oil capacity 0.5 l (0.11 gal.)
Fuel system
Injection pressure 200 kg/cm2 (19.6 MPa)
Fuel supply advance angle 22°±1°
