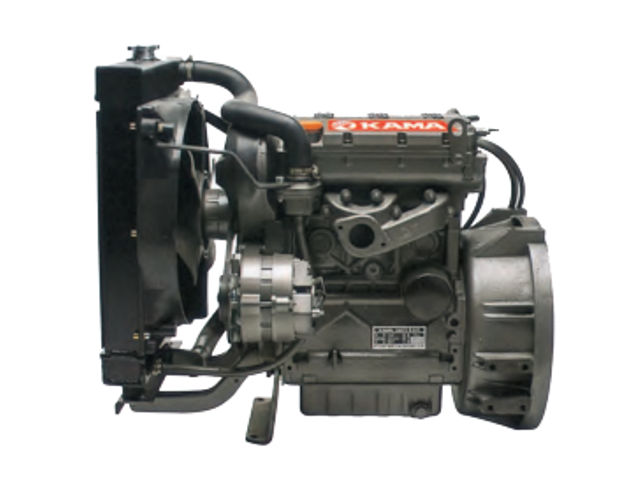

The Kama KM375FE is a 1,028 cc (67.72 cu.in.) Three-cylinder water-coolled 4-stroke internal combustion diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.
The KM375FE engine compression ratio rating is 22.8:1, cylinder bore and piston stroke are 75.0 mm (2.95 in) and 77.6 mm (3.06 in), respectively.
The rated output is 20.5 HP (15.0 kW) and maximum horsepower is 22.5 HP (16.5 kW).
General information
| Engine Specifications | |
| Model | Kama KM375FE |
| Type | Three cylinder,4-stroke, vertical type injection |
| Displacement | 1,028 cm 3 (67.72 cu-in) |
| Max. horsepower | 22.5 HP (16.5 kW) |
| Max. torque | – |
| Cooling system | Forced cooling |
| Lubricating system | Splash system |
| Starting system | Electric starter |
| Fuel used | Light diesel oil |
| Fuel consumption | 298 g/kWH |
Dimensions and Weight
| Kama KM375FE | |
| Length, mm (in) | 513 (20.2) |
| Width, mm (in) | 412 (16.2) |
| Height, mm (in) | 515.5 (20.3) |
| Weight, kg (lb) | 85.0 (187.4) |
Maintenance data
| Engine | |
| Engine speed | 3,600 ± 150 rpm |
| Oil system | |
| Oil type | Oil for 4-stroke engines (above CD grade) |
| Recommended oil | SAE 15-W40 |
| Oil capacity | 2.5 l (0.55 gal.) |
