Torx TX140

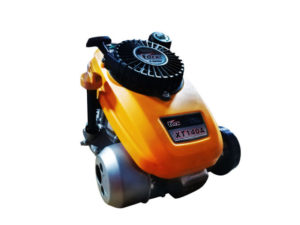

Torx TX140The Torx TX140 is a 140 cc (9.15 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with a vertical shaft.

The Torx TX140 engine has a single-cylinder with a vertical shaft, an overhead valve (OHV) design, horizontal carburetor, and recoil starter.

The Torx TX140 motor has a 65.0 mm (2.56 in) cylinder bore and 42.5 mm (1.67 in) piston stroke with a compression ratio of 8.5:1.

It produced 4.0 PS (2.9 kW; 4.0 HP) HP at 3,600 rpm of horsepower and 6.0 N·m (0.6 kg·m, 4.4 ft·lb) at 3,000 rpm of torque.

General information

Engine Specifications
ModelTX140
Type4-stroke, OHV, single cylinder
Displacement140 cm 3 (8.54 cu-in)
Max. horsepower4.0 PS (2.9 kW; 4.0 HP) HP at 3,600 rpm
Max. torque (crank PTO)6.0 N·m (0.6 kg·m, 4.4 ft·lb) at 3,000 rpm
CarburetorHorizontal type
Cooling systemForced-air
Ignition system
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity0.8 L (0.21 US. gal. 0.18 Imp. gal.)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30
Oil capacity0.55 L (0.58 US. qt, 0.48 Imp. qt.)
