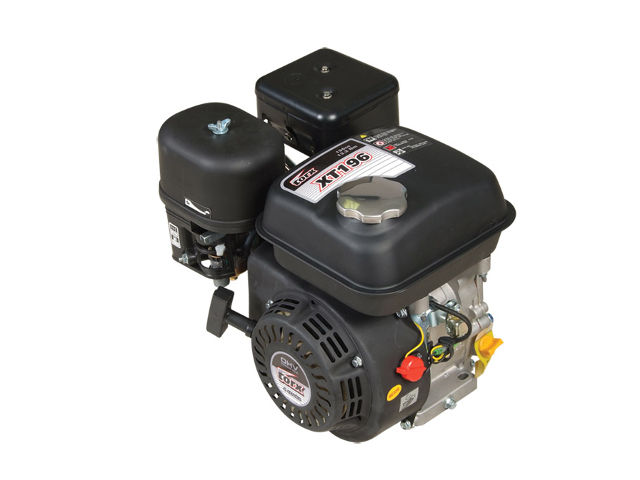

The Torx TX196 engine has a single-cylinder with a horizontal shaft, an overhead valve (OHV) design, horizontal carburetor, and recoil starter.
The Torx TX196 motor has a 68.0 mm (2.68 in) cylinder bore and 54.0 mm (2.13 in) piston stroke with a compression ratio of 8.5:1.
It produced 6.5 PS (4.8 kW; 6.5 HP) at 3,600 rpm of horsepower and 10.7 N·m (1.1 kg·m, 7.9 ft·lb) at 3,000 rpm of torque.
|Type||4-stroke, OHV, single cylinder|
|Displacement||196 cm 3 (11.96 cu-in)|
|Max. horsepower||6.5 PS (4.8 kW; 6.5 HP) at 3,600 rpm|
|Max. torque (crank PTO)||10.7 N·m (1.1 kg·m, 7.9 ft·lb) at 3,000 rpm|
|Starting system||Recoil starter|
|Stoping system||Ignition primary circuit ground|
|Fuel used||Unleaded gasoline (octane number 86 or higher)|
|Fuel tank capacity||3.6 L (0.95 US. gal. 0.79 Imp. gal.)|
|PTO shaft rotation||Counterclockwise (from PTO shaft side)|
|Oil type||4-stroke or an equivalent (SJ)|
|Recommended oil||SAE 10W-30|
|Oil capacity||0.6 L (0.63 US. qt, 0.53 Imp. qt.)|
