Torx TX390

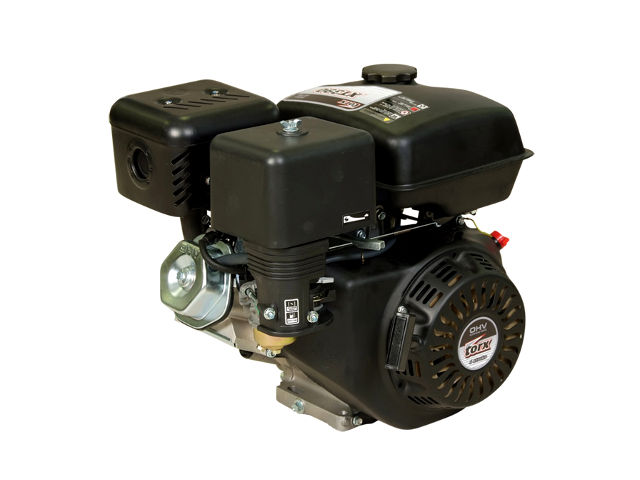

Torx TX390The Torx TX390 is a 390 cc (23.80 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with a horizontal PTO shaft.

The Torx TX390 engine has a single-cylinder with a horizontal shaft, an overhead valve (OHV) design, horizontal carburetor, and recoil starter.

Bore and stroke are 88.0 mm (3.46 in) and 64.0 mm (2.52 in), respectively. Compression ratio rating is 8.0:1.

The TX390 produced 13.0 PS (9.5 kW; 13.0 HP) at 3,600 rpm of maximum horsepower and 22.0 N·m (2.2 kg·m, 16.2 ft·lb) at 2,700 rpm of maximum torque.

General information

Engine Specifications
ModelTX390
Type4-stroke, OHV, single cylinder
Displacement390 cm 3 (23.80 cu-in)
Max. horsepower13.0 PS (9.5 kW; 13.0 HP) at 3,600 rpm
Max. torque (crank PTO)22.0 N·m (2.2 kg·m, 16.2 ft·lb) at 2,700 rpm
CarburetorHorizontal type
Cooling systemForced-air
Ignition system
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity6.5 L (1.72 US. gal. 1.43 Imp. gal.)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30
Oil capacity1.1 L (1.16 US. qt, 0.97 Imp. qt.)
