Torx TX420

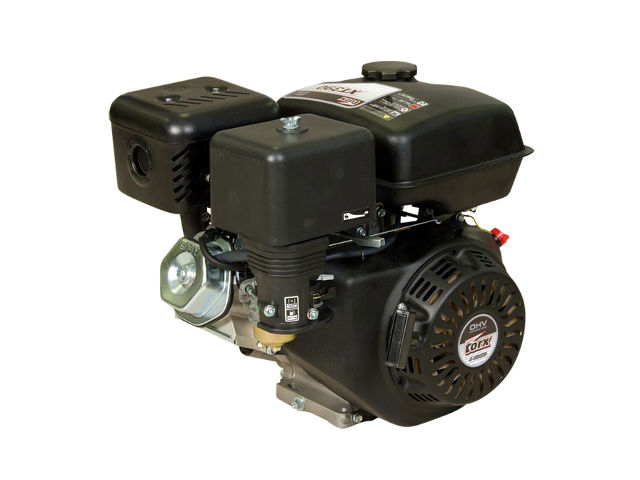

Torx TX420The Torx TX420 is a 420 cc (25.63 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with a horizontal PTO shaft.

The Torx TX420 engine has a single-cylinder with a horizontal shaft, an overhead valve (OHV) design, horizontal carburetor, and recoil starter.

A 90.0 mm (3.54 in) cylinder bore and 66.0 mm (2.6 in) piston stroke give the motor a total of 420 cc (25.63 cu-in) of displacement. Compression ratio rating is 8.5:1.

The TX420 produced 13.0 PS (9.5 kW; 13.0 HP) at 3,600 rpm of maximum horsepower and 22.0 N·m (2.2 kg·m, 16.2 ft·lb) at 2,700 rpm of maximum torque.

General information

Engine Specifications
ModelTX420
Type4-stroke, OHV, single cylinder
Displacement390 cm 3 (23.80 cu-in)
Max. horsepower15.0 PS (11.0 kW; 15.0 HP) at 3,600 rpm
Max. torque (crank PTO)23.0 N·m (2.3 kg·m, 17 ft·lb) at 2,750 rpm
CarburetorHorizontal type
Cooling systemForced-air
Ignition system
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity6.5 L (1.72 US. gal. 1.43 Imp. gal.)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30
Oil capacity1.1 L (1.16 US. qt, 0.97 Imp. qt.)
