Torx TX200

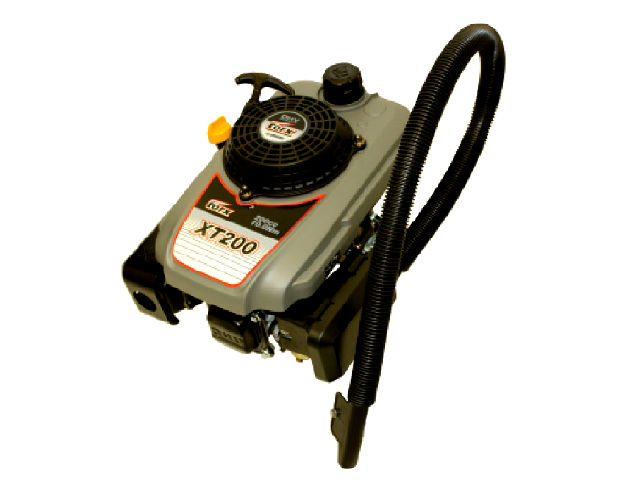

Torx TX200The Torx TX200 is a 196 cc (11.96 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with a vertical shaft.

The Torx TX200 engine has a single cylinder with a vertical shaft, an overhead valve (OHV) design, horizontal carburetor, and recoil starter.

The Torx TX200 motor has a 70.0 mm (2.76 in) cylinder bore and 51.0 mm (2.01 in) piston stroke with a compression ratio of 8.0:1.

It produced 6.5 PS (4.8 kW; 6.5 HP) at 3,600 rpm of horsepower and 10.0 N·m (1 kg·m, 7.4 ft·lb) at 3,000 rpm of torque.

General information

Engine Specifications
ModelTX200
Type4-stroke, OHV, single cylinder
Displacement196 cm 3 (11.96 cu-in)
Max. horsepower6.5 PS (4.8 kW; 6.5 HP) at 3,600 rpm
Max. torque (crank PTO)10.0 N·m (1 kg·m, 7.4 ft·lb) at 3,000 rpm
CarburetorHorizontal type
Cooling systemForced-air
Ignition system
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity1.0 L (0.26 US. gal. 0.22 Imp. gal.)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30
Oil capacity0.6 L (0.63 US. qt, 0.53 Imp. qt.)
