Rato RV175

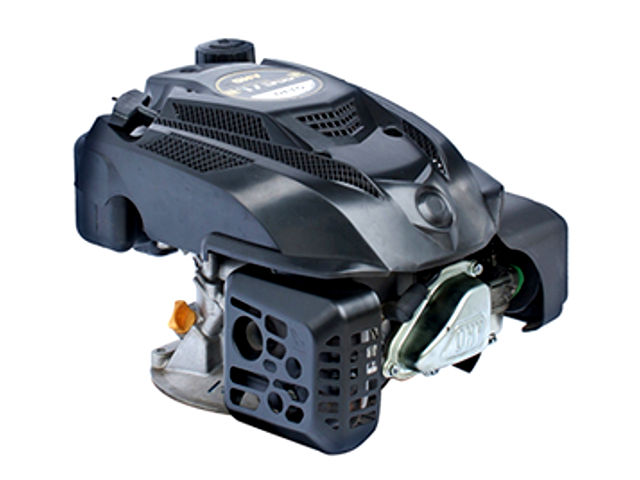

Rato RV175The Rato RV175 is a 173.9 cc (10.61 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with vertical shaft, manufactured by Chongqing RATO Holding (Group) CO., LTD.

The Rato RV175 engine has a single-cylinder with a vertical shaft; an overhead valve (OHV) design; flat suction valve carburetor; recoil starter or electric starter, transistorized magneto ignition system and centrifugal mechanical governor system.

A 70.0 mm (2.76 in) cylinder bore and 45.2 mm (1.78 in) piston stroke give the Rato RV175 motor a total of 173.9 cc of displacement. Compression ratio rating is 8.3:1. It produced 3.0 kW at 3,600 rpm of horsepower and 9.5 N·m (0.97 kg·m, 7.0 ft·lb) at 2,500 rpm of torque.

General information

Engine Specifications
ModelRV175
Type4-stroke, OHV, single cylinder
Displacement173.9 cm 3 (10.61 cu-in)
Max. horsepower3.0 kW at 3,600 rpm
Max. torque (crank PTO)9.5 N·m (0.97 kg·m, 7.0 ft·lb) at 2,500 rpm
CarburetorFlat suction valve carburetor
Cooling systemForced-air
Ignition systemTransistorized magneto
Lubricating systemSplash
Starting systemRecoil / electric starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30, 15W-40
Oil capacity0.6 L
Ignition system
Spark plugNGK: BPR6ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
