Kama KM188F/E

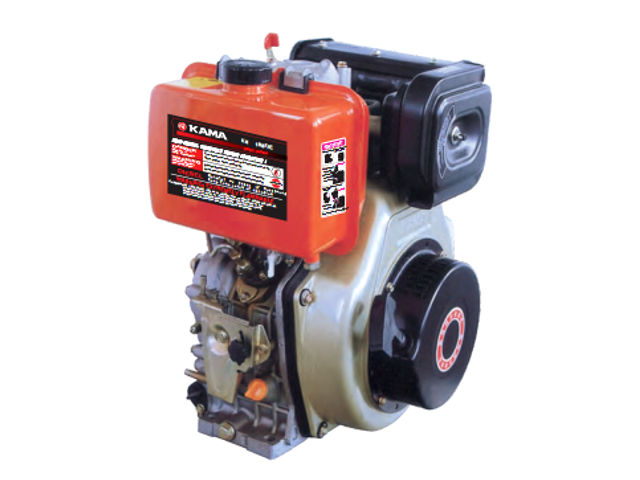

Kama KM188F/E diesel engineThe Kama KM188F/E is a 456 cc (27.82 cu.in.) single-cylinder air-coolled 4-stroke direct injection diesel engine manufactured by WUXI WORLDBEST KAMA POWER CO., LTD.

The KM188F/E has OHV design, direct injection system, and recoil starter.

The KM188F/E engine cylinder bore and piston stroke are 88.0 mm (3.48 in) and 75.0 mm (2.95 in), respectively. The Kama KM188F/E produced from 9.5 HP (7.0 kW) at 3,000 rpm up to 10.2 HP (7.5 kW) at 3,600 rpm of horsepower.

General information

Engine Specifications
Type4-stroke, single cylinder, diesel engine
Displacement456 cm 3 (27.82 cu-in)
Max. horsepower10.25 HP (7.5 kW) at 3,600 rpm
Max. torque
Cooling systemForced-air
Lubricating systemPressure spray compound
Starting systemRecoil or electric starter
Fuel usedLight diesel oil
Fuel tank capacity5.5 L (1.21 gal.)

Dimensions and Weight

Kama KM188F/E
Length, mm (in)422 (16.61)
Width, mm (in)460 (18.11)
Height, mm (in)498 (19.61)
Weight, kg (lb)49.0 (107.9)

Maintenance data

Engine speed3,000-3,600 rpm
Valve clearance (cold state)0.10-0.15 mm (0.0039-0.0059 in)
Oil system
Oil typeOil for 4-stroke engines (above CC grade)
Recommended oilSAE 10W-30
Oil capacity1.65 l (0.36 gal.)
Fuel system
Injection pressure200 kg/cm2 (19.6 MPa)
Fuel supply advance angle23°±1°
